Heavy Duty 2 Channel Rubber Hose and Cable Ramp – Black
| Product Code: | WHHCR09 |
|---|---|
| Dimensions: | 850 x 300 x 84 mm |
| Weight: | 13 kg |

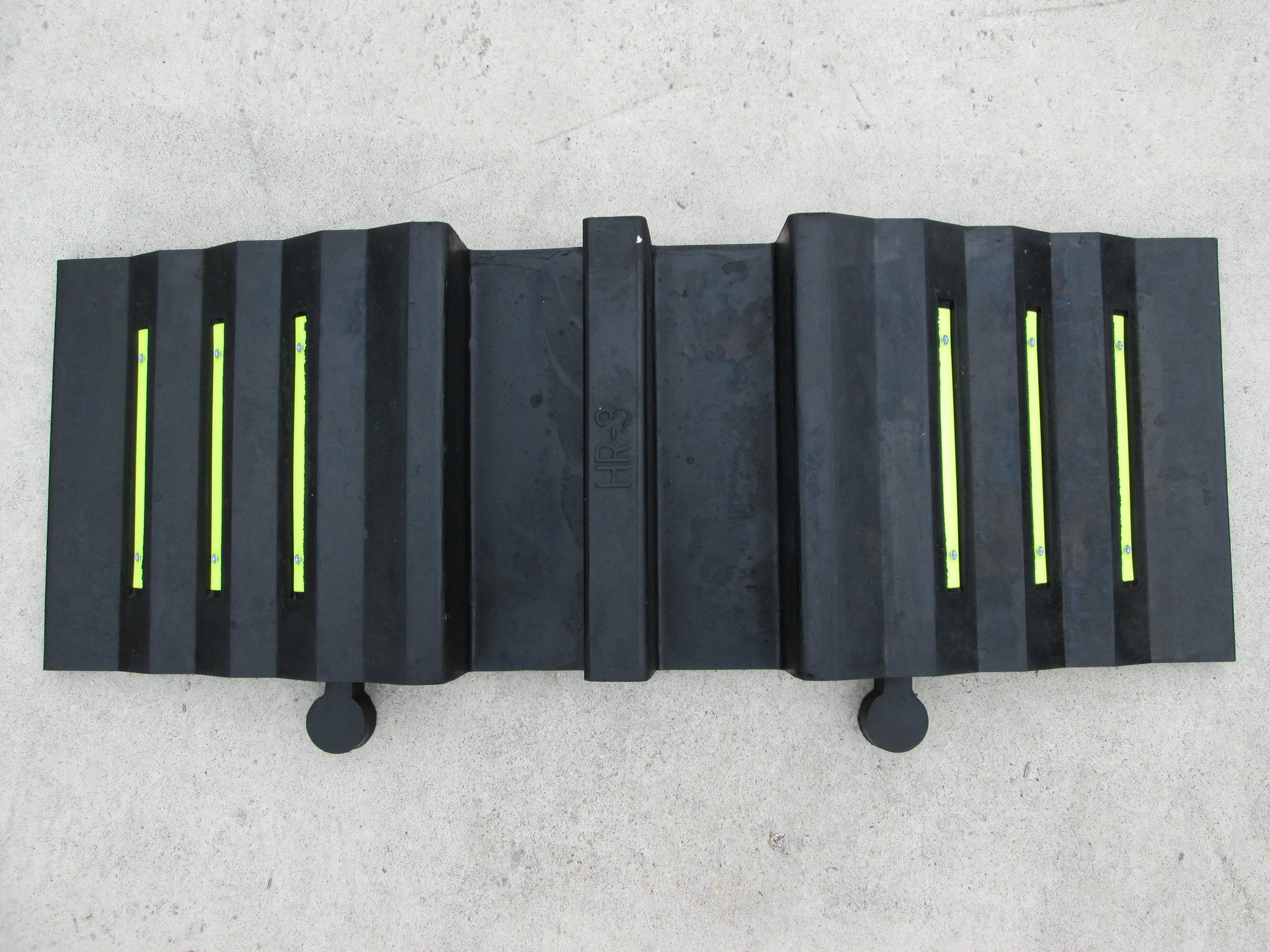

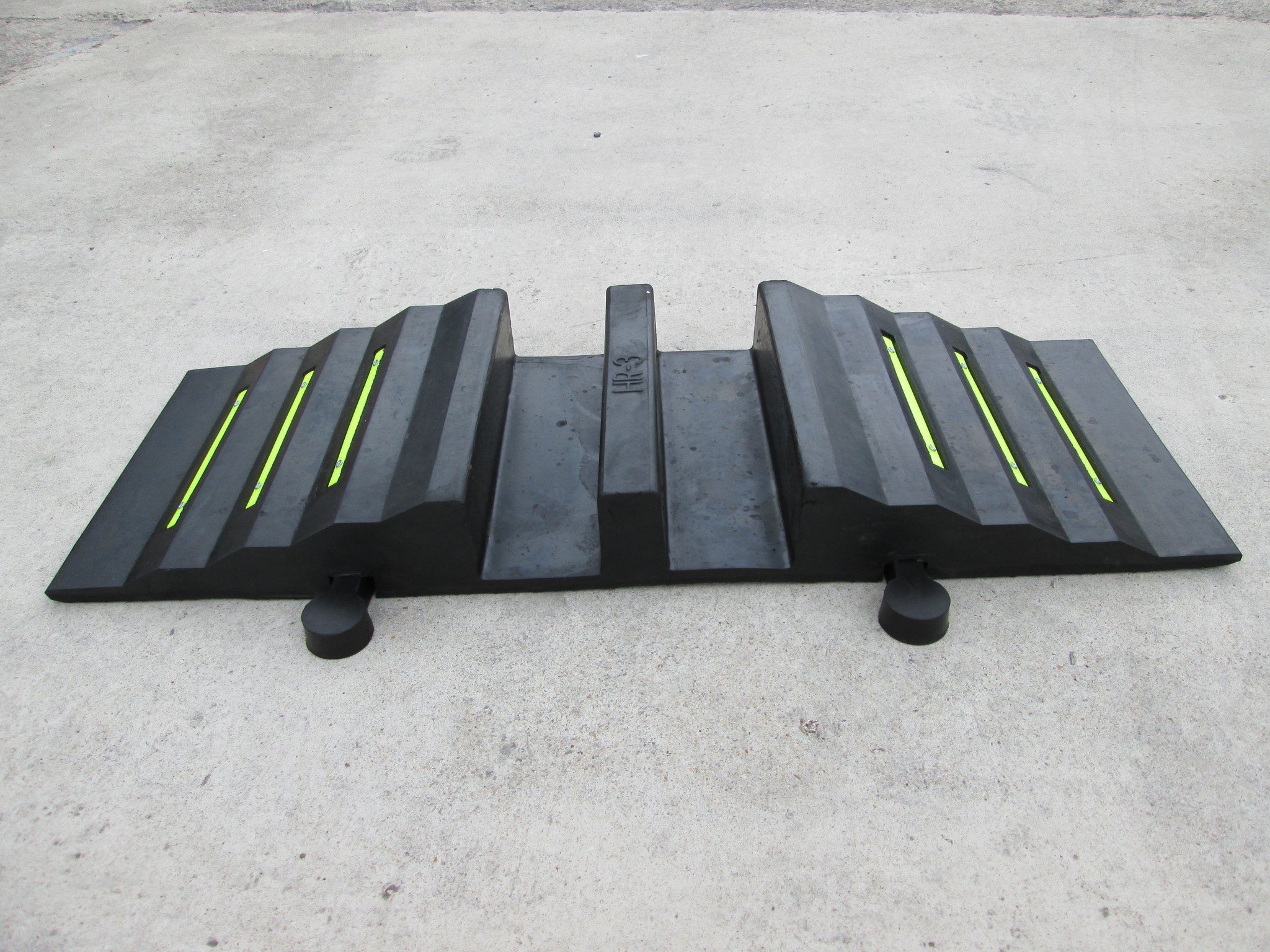

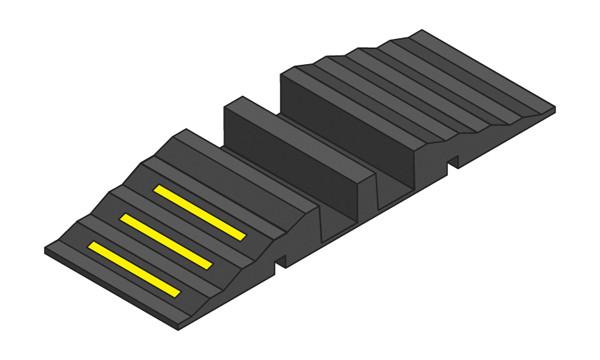

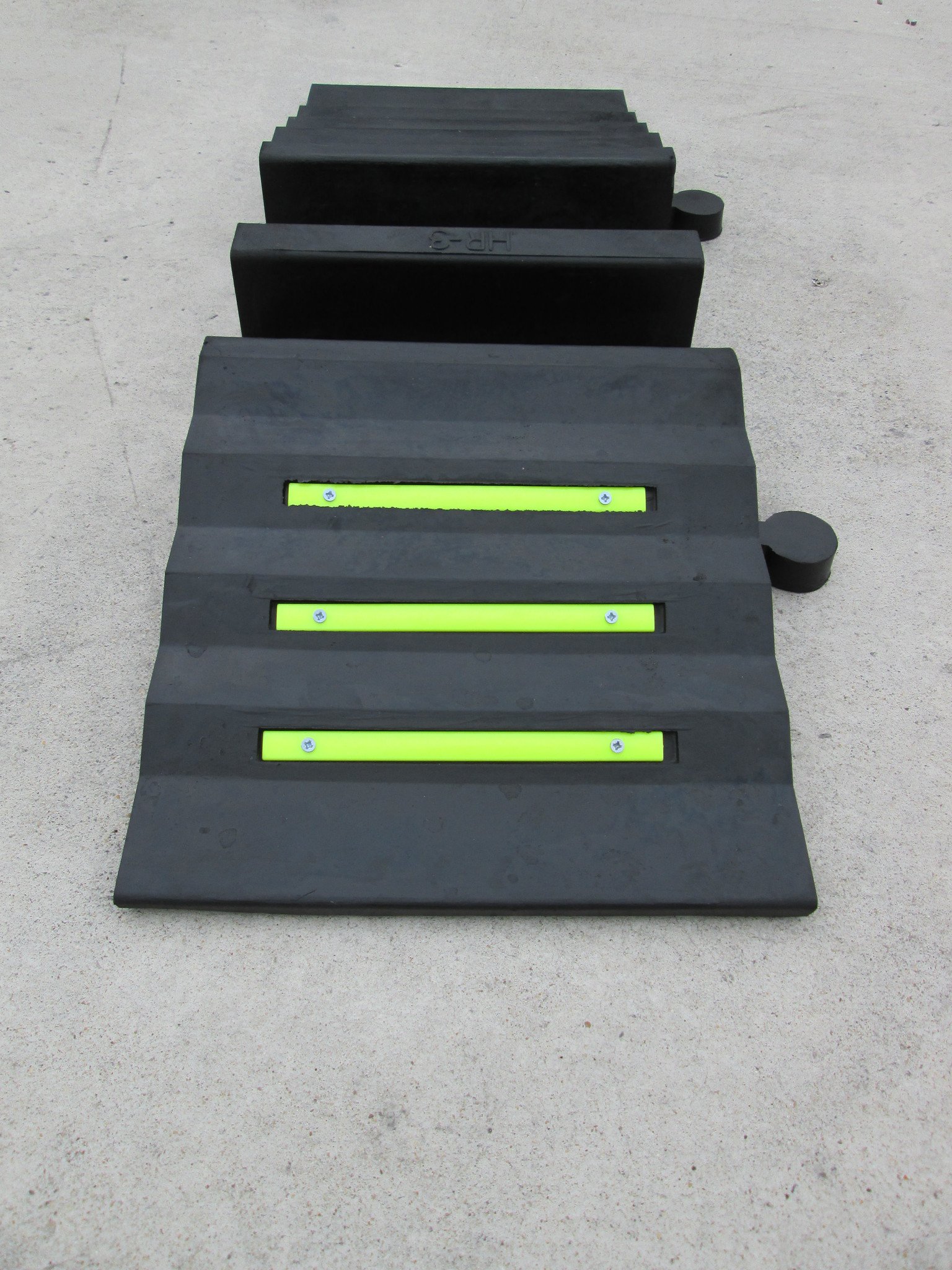

A tried, tested, and trusted product, the 2-Channel Heavy Duty Rubber Hose and Cable Ramp in Black is the original moulded rubber hose ramp. Designed for the Fire Brigade's 2.5" lay-flat hose, it is a cost-effective ramped cable protector with two open channels. Three high-visibility yellow stripes feature on each of the ramped faces, and the solution is fitted with two connectors.
Technical specifications

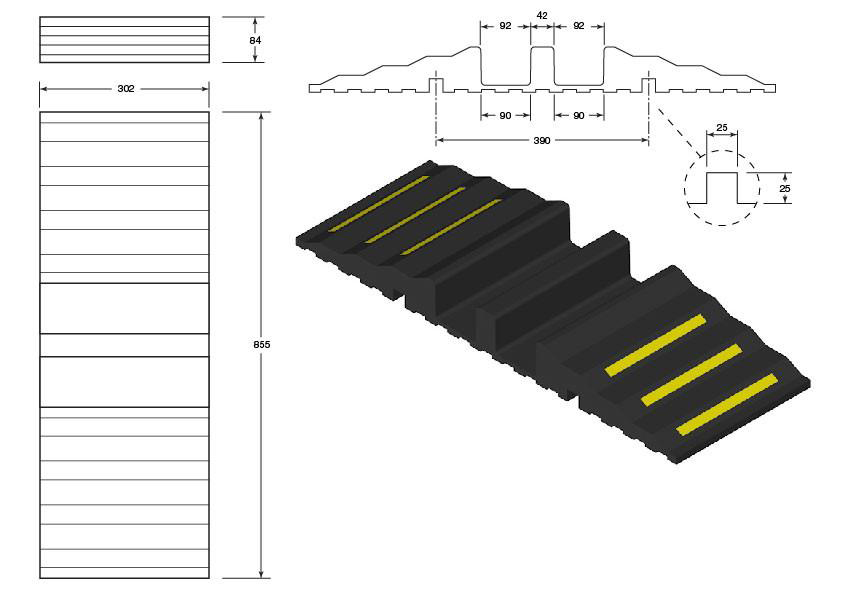

The hose ramp measures 850 mm x 300 mm x 84 mm and weighs 13 kg. It is robust, durable, and capable of withstanding heavy loads. Each channel is 70 mm deep and tapers outwards towards the top. As such, it measures 85mm wide at the base and 92 mm at the top.
Use cases and applications
The Black 2-Channel Heavy Duty Rubber Hose and Cable Ramp is best suited to commercial and environmental environments and instances where heavy-duty hosing is in use.
For more information on our 2 Channel Heavy Duty Rubber Hose and Cable Ramp in Black, contact our expert team at 0117 954 1117 or email info@provincialrubber.co.uk.
| Max loading | 12 Tonnes per single wheel axle. |
|---|---|
| Channels | 50mm deep x 35mm wide |
| Max Load | 44 Tonnes |
| Outer Channels | 70mm wide x 50mm deep |
| Inner Channel | 55mm wide x 50mm deep |
| 2 Channels | 32mm base x 34mm high |
