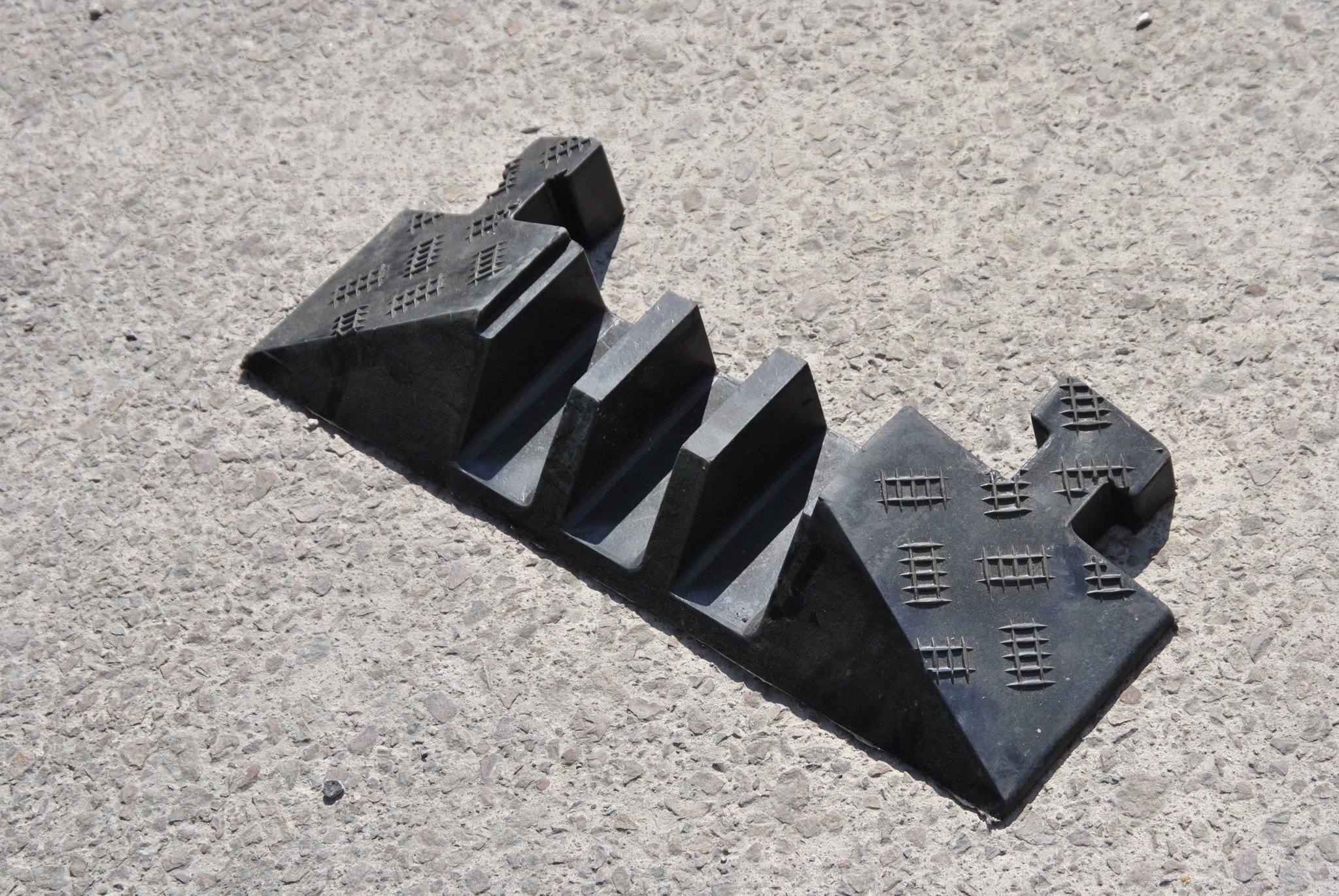

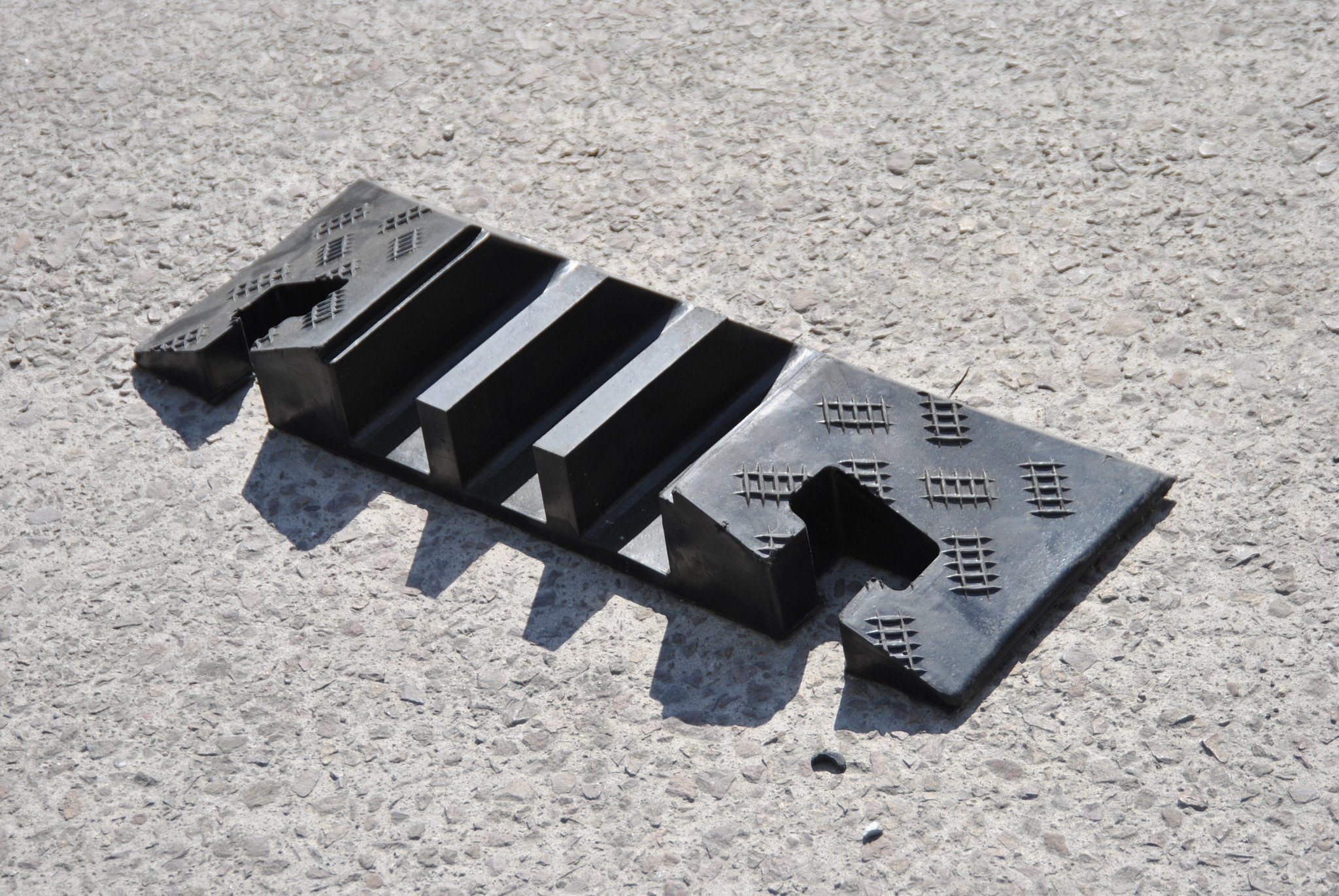

3 Channel Hose and Cable Ramp End Connector – Male/Female
| Product Code: | WHHCR08 |
|---|---|
| Dimensions: | (Male fitting) 150 x 590 x 80 mm : (Female fitting) 200 x 590 x 80 mm |
| Weight: | 9 kg |
A durable, hard-wearing solution, the 3-Channel Hose and Cable Ramp End Connector - Male/Female is a three-channel ramp designed for use with the WHHCR07 Interlocking 3-Channel Lidded Cable Protector Ramp. It tapers the end of the ramp solution, enhancing safety. The product includes two end connectors, one male and one female fitting, and has no lid.
Technical specifications
The male end connector measures 150 mm x 590 mm x 80 mm, and the female end connector measures 200 mm x 590 mm x 80 mm. The connectors weigh approximately 9 kg. As with the standard ramp sections, they have a maximum loading capacity of 12 tonnes per single-wheel axle. The outer channels are 70 mm wide and 50 mm deep, and the inner central channel is 55 mm wide and 50 mm deep.
For more information on our 3 Channel Hose and Cable Ramp End Connector - Male/Female, contact our expert team at 0117 954 1117 or email info@provincialrubber.co.uk.
| Max Load | 12 Tonnes per vehicle axle when joined to WHHCR07 |
|---|---|
| Outer Channels | 70mm wide x 50mm deep |
| Inner Channel | 55mm wide x 50mm deep |
| Channels | 50mm deep x 35mm wide |
| Max loading | 12 Tonnes per single wheel axle. |
| 2 Channels | 32mm base x 34mm high |
