9 2-Channel Cable Protector Ramp – Yellow/Black
| Product Code: | WHHCR10 |
|---|---|
| Dimensions: | 900 x 615 x 100 mm |
| Weight: | 26 kg |

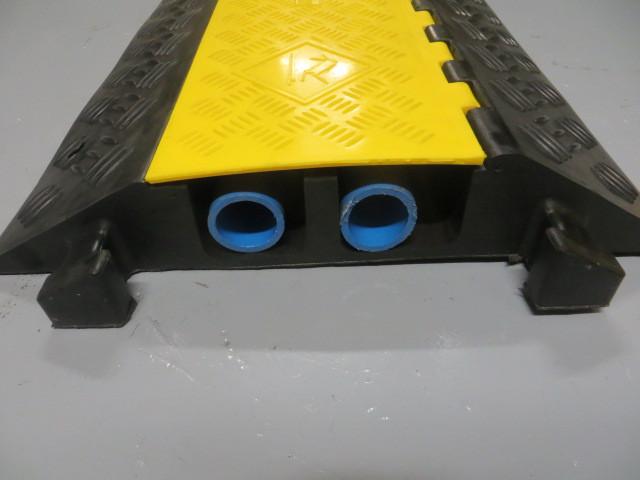

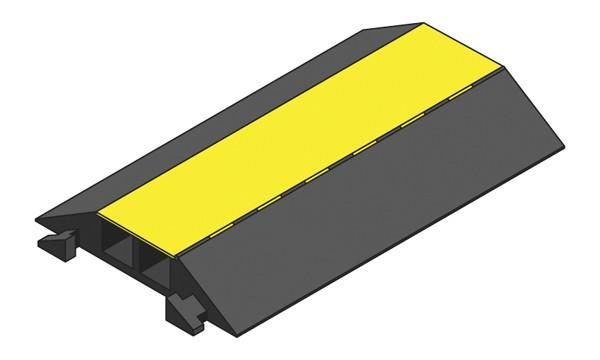

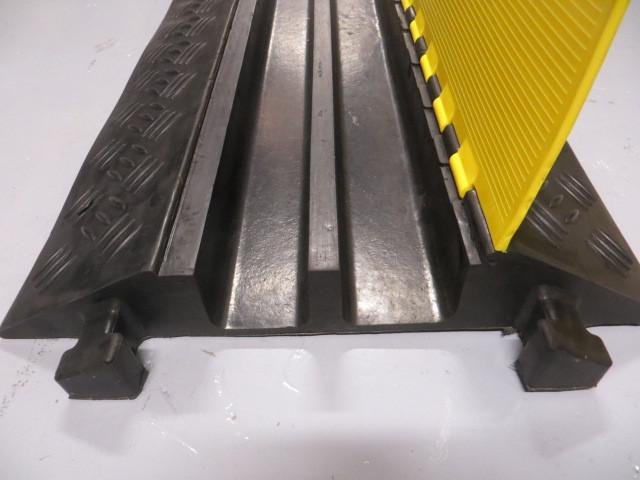

Designed to protect cables and minimise trip risks, the 9m 2-Channel Cable Protector Ramp in Yellow and Black features a high-visibility yellow PE hinged lid and black ramped sides. Integrated connectors allow you to connect ramps to cover longer stretches of cable, and the lid ensures you can add or remove cables once the ramp is in place. The protector accommodates two cables or hoses.
Technical specifications
Weighing 26 kg and measuring 900 mm x 615 mm x 100 mm, this two-channel ramped protector boasts a maximum loading capacity of 12 tonnes per vehicle axle. The cable slots are 84 mm wide at the base, 92 mm wide at the top and 75 mm deep.
Use cases and applications
The ramp is a temporary solution and not a permanent fitting intended for commercial and industrial environments. It is optimised for pedestrian and light vehicle traffic and is not suitable for forklifts.
For more information on our 9mtr 2 Channel Cable Protector Ramp - Yellow/Black, contact our expert team at 0117 954 1117 or email info@provincialrubber.co.uk.
| Max load | 12 Tonnes per vehicle axle |
|---|---|
| Channels | 84mm width (base), 92mm width (top), 75mm height |
