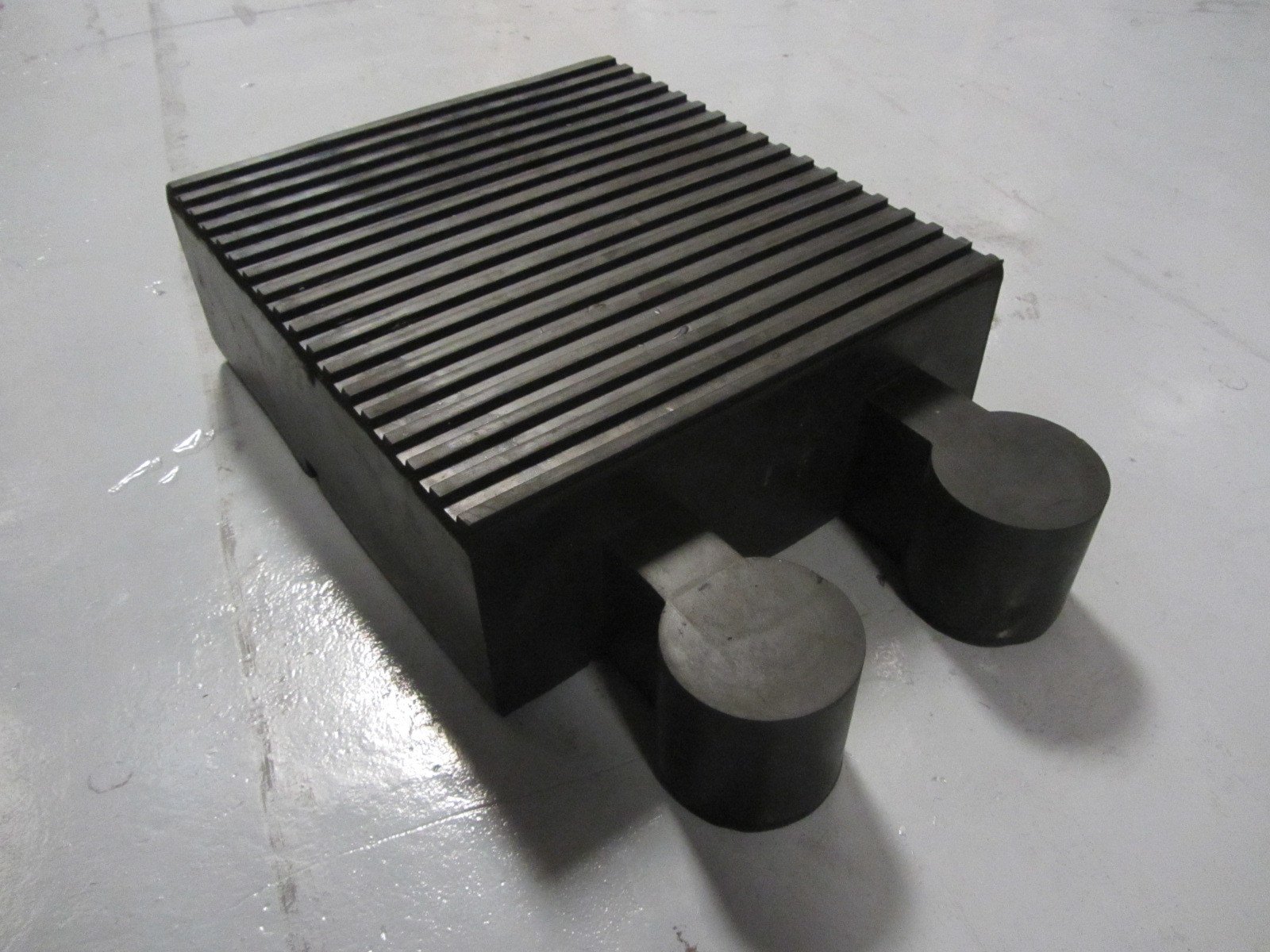

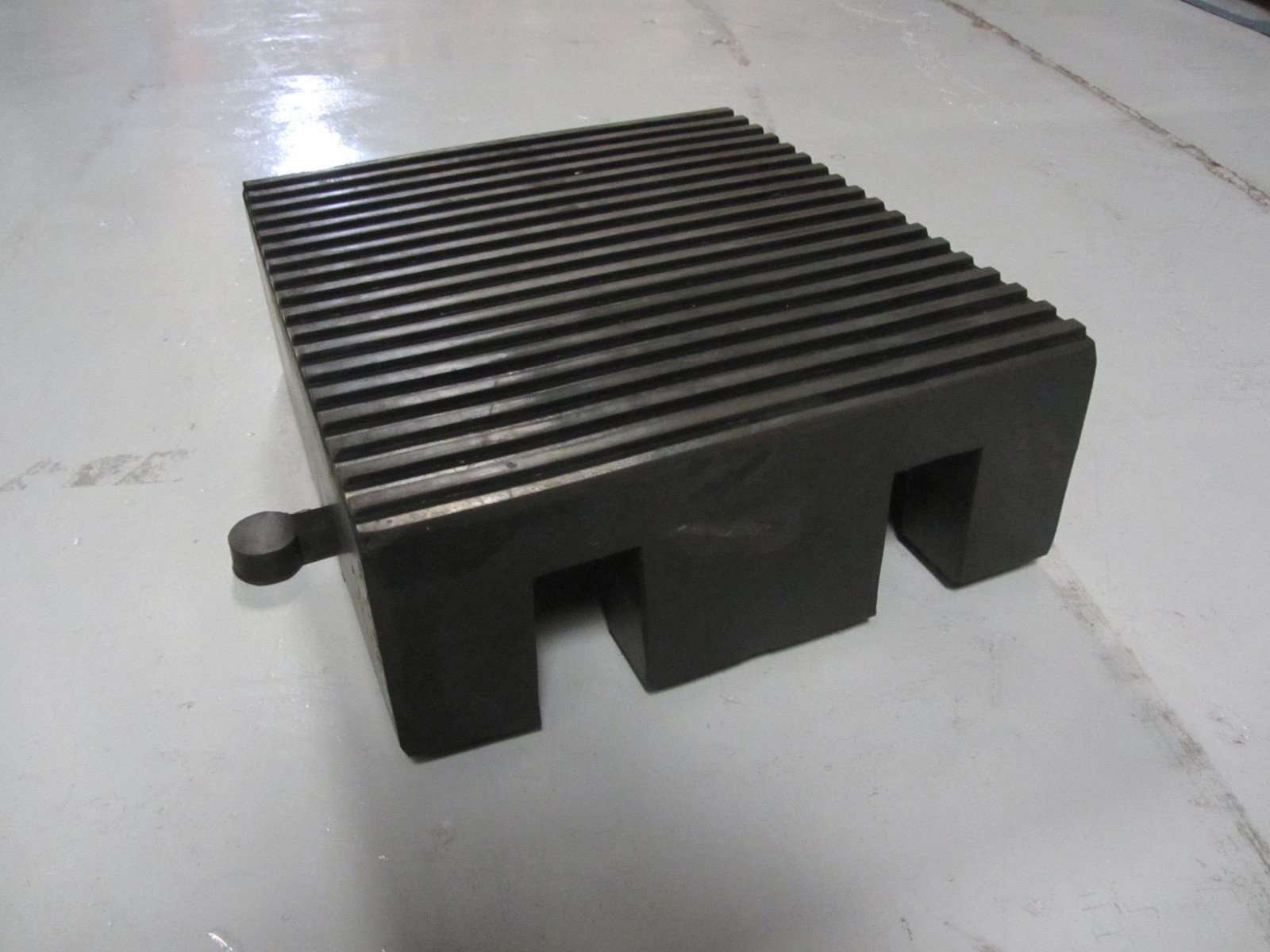

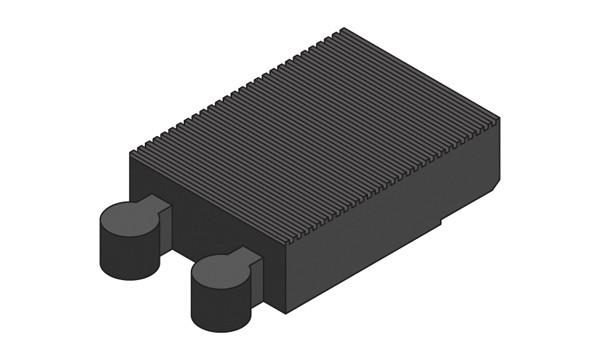

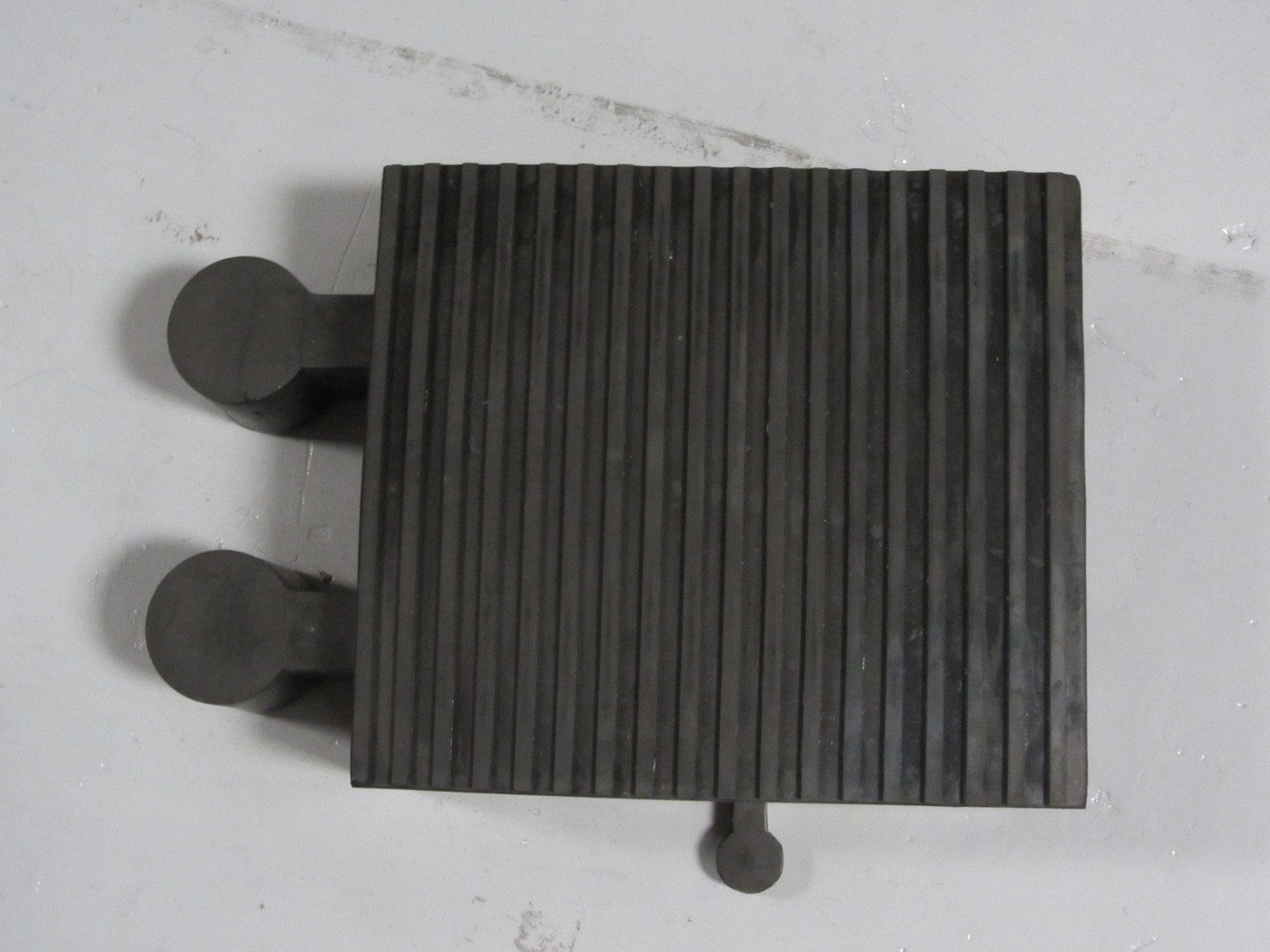

Heavy Duty Cable Ramp Rubber Block Module – Black
| Product Code: | WHHCR19 |
|---|---|
| Dimensions: | 450 x 400 x 160 mm |
| Weight: | 34 kg |
The WHHCR19 Heavy Duty Cable Ramp Rubber Block Module - Black is an important component in our modular ramp system. This particular component keeps vehicles 160 mm above the ground, and it can be combined with other components to create a ramp with a maximum length of 3400 mm, enabling most vehicles to traverse the ramp without "beaching”.
Technical specifications
Our rubber block module measures 450 mm x 400 mm x 160 mm and weighs around 34 kg. It is part of a modular system designed to accommodate large cables and hoses with diameters ranging from 140 mm to 180 mm, depending on which steel bridge section you use. It has a max load capacity of 44 tonnes.
Use cases and applications
A great choice for businesses in the commercial and industrial sectors, the rubber block module is well-suited to applications where customers want some control over the length of the ramps and steel bridge in their cable protector system.
For more information on our Heavy Duty Cable Ramp Rubber Block Module - Black, contact our expert team at 0117 954 1117 or email info@provincialrubber.co.uk.
| Max Load | 44 Tonnes |
|---|---|
| Channel | 105 x 200mm |
