Steel Topped Single Channel Hose Ramp – Black
| Product Code: | WHHCR16 |
|---|---|
| Dimensions: | 810 x 290 x 120 mm |
| Weight: | 32 kg |

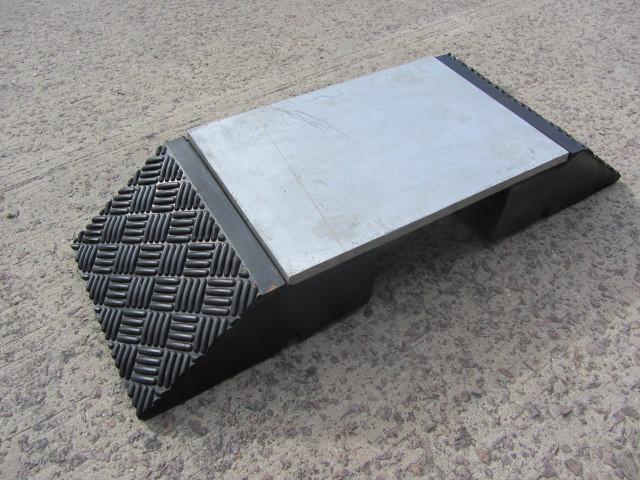

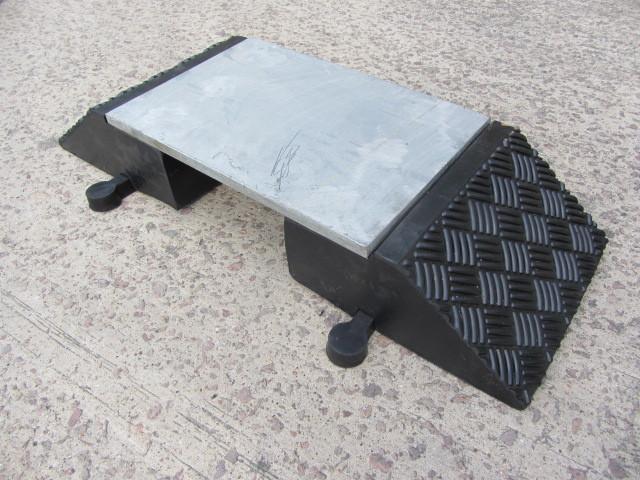

The Steel Topped Single Channel Hose Ramp - Black is a heavy-duty cable and hose protector that enables pedestrians and vehicles to cross critical operational infrastructure safely and without causing damage. Featuring two black ramped sections with textured anti-slip surfaces and a steel top, the ramp can accommodate a single hose or cable. It benefits from integrated moulded connectors so you can join several ramps together.
Technical specifications
The ramp measures 810 mm x 290 mm x 120 mm and weighs 32 kg. The channel is designed for hoses with a maximum diameter of 105 mm, and the ramp's max load capacity is 80 tonnes.
For a larger version of this product, see the WHHCR25 Hose And Cable Ramp.
Use cases and applications
The Steel Topped Single Channel Hose Ramp is an excellent solution for commercial and industrial environments where cable protectors must be able to accommodate heavier vehicle traffic.
For more information on our Steel-Topped Single Channel Hose Ramp in Black, contact our expert team at 0117 954 1117 or email info@provincialrubber.co.uk.
| Max Load | 80 Tonnes |
|---|---|
| Channel | 105 x 200mm |
