Wide Aluminium Cable Protector Ramp with Z Clips – Yellow
| Product Code: | WHHCR27 |
|---|---|
| Dimensions: | 2080 x 995 x 235 mm |
| Weight: | 35 kg |

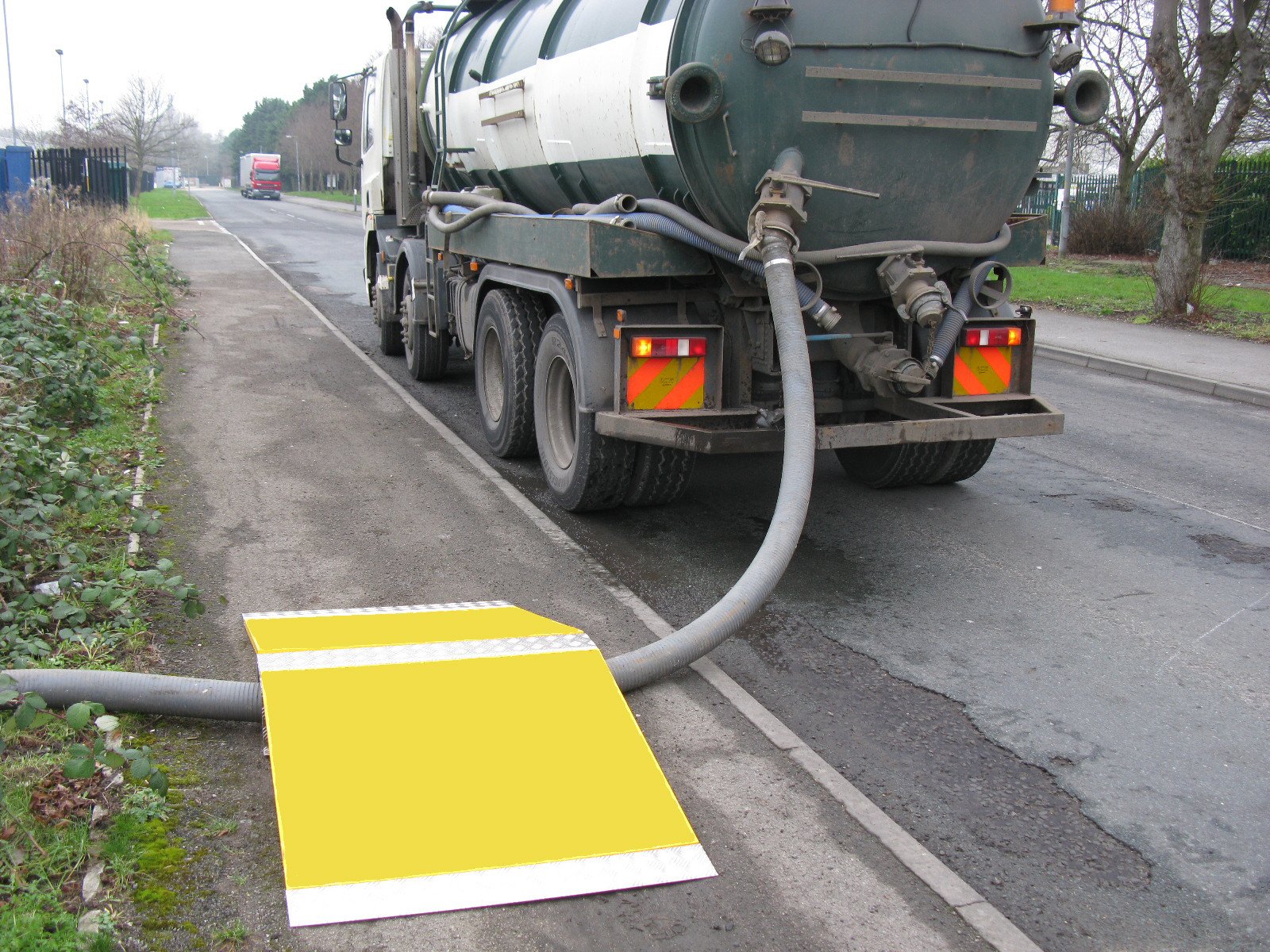

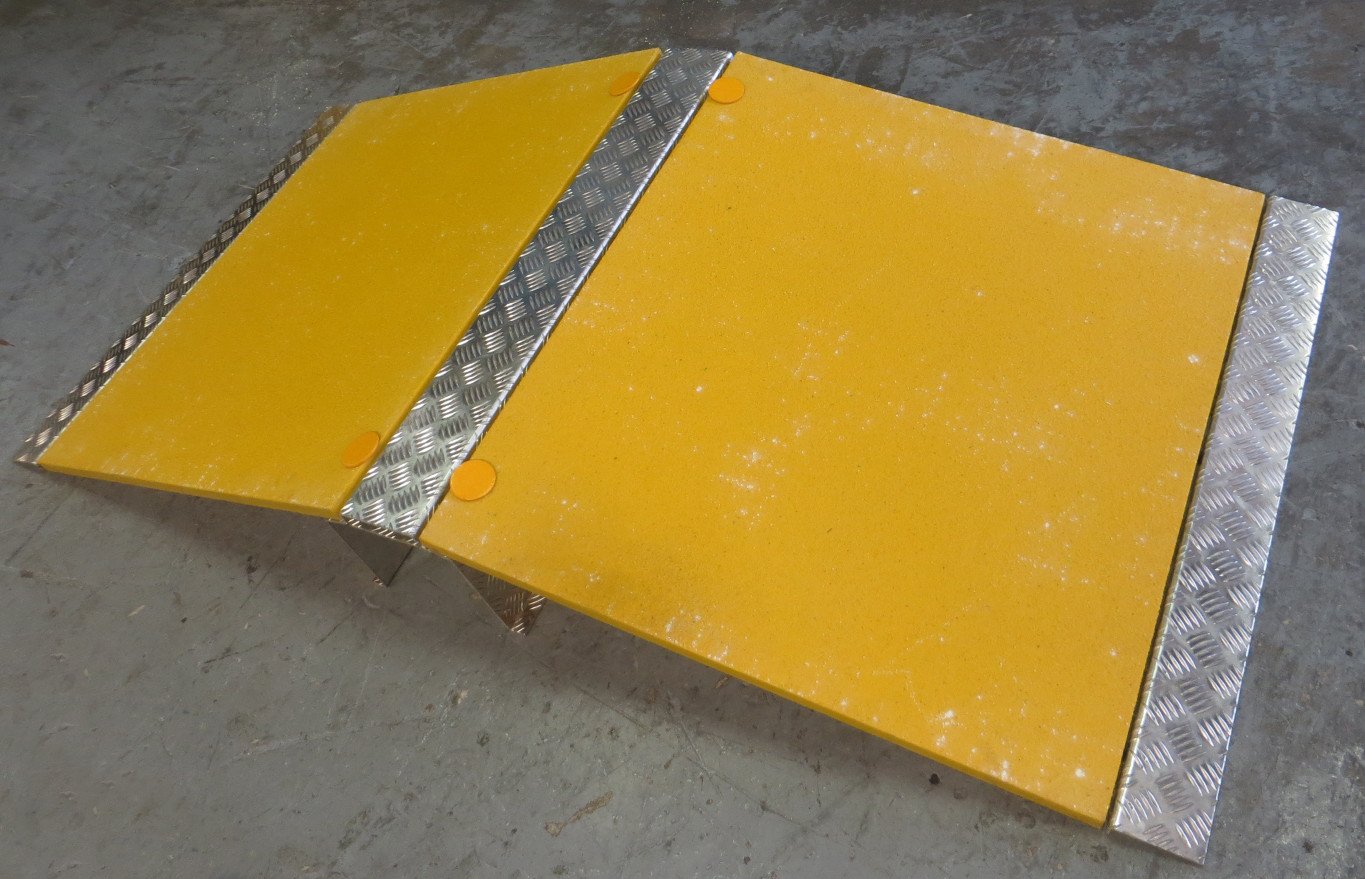

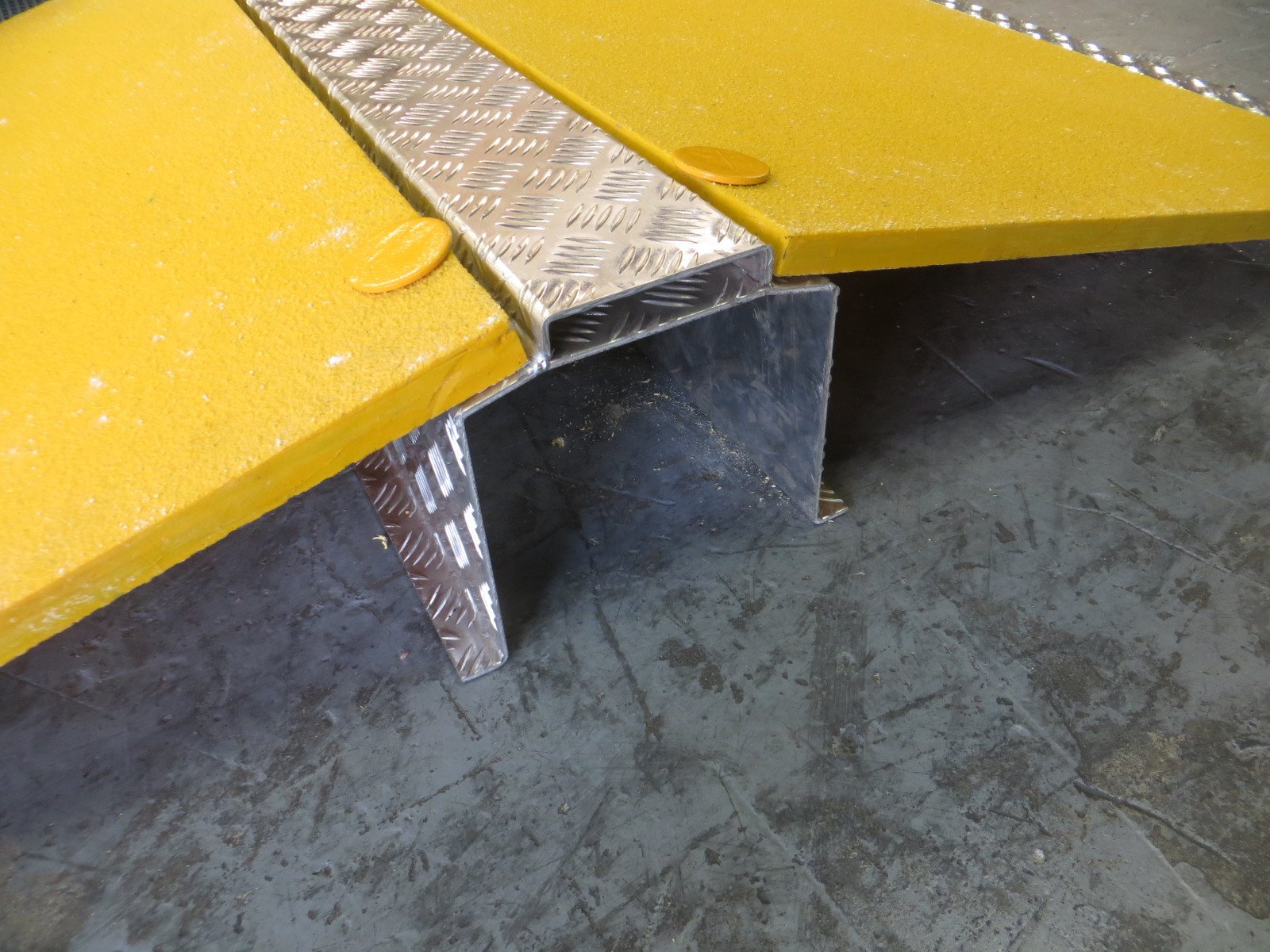

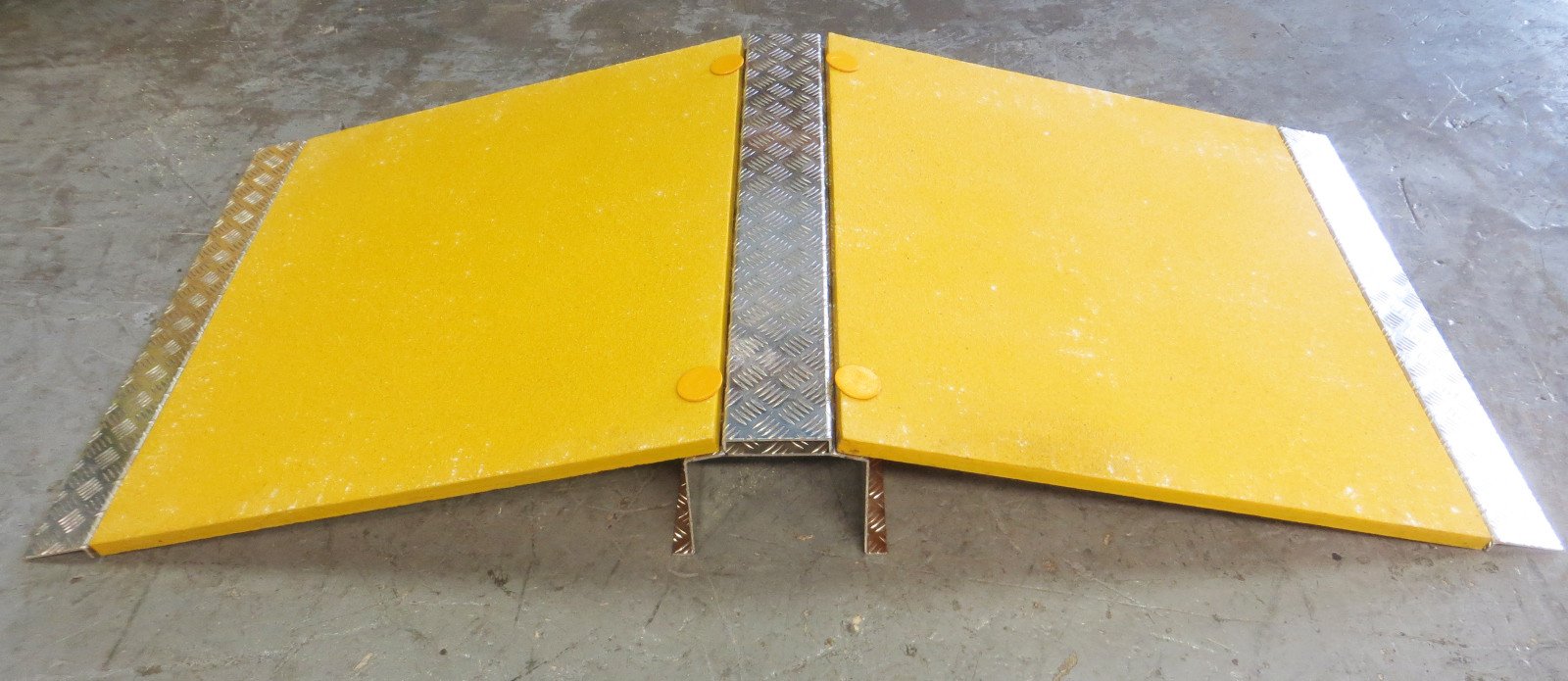

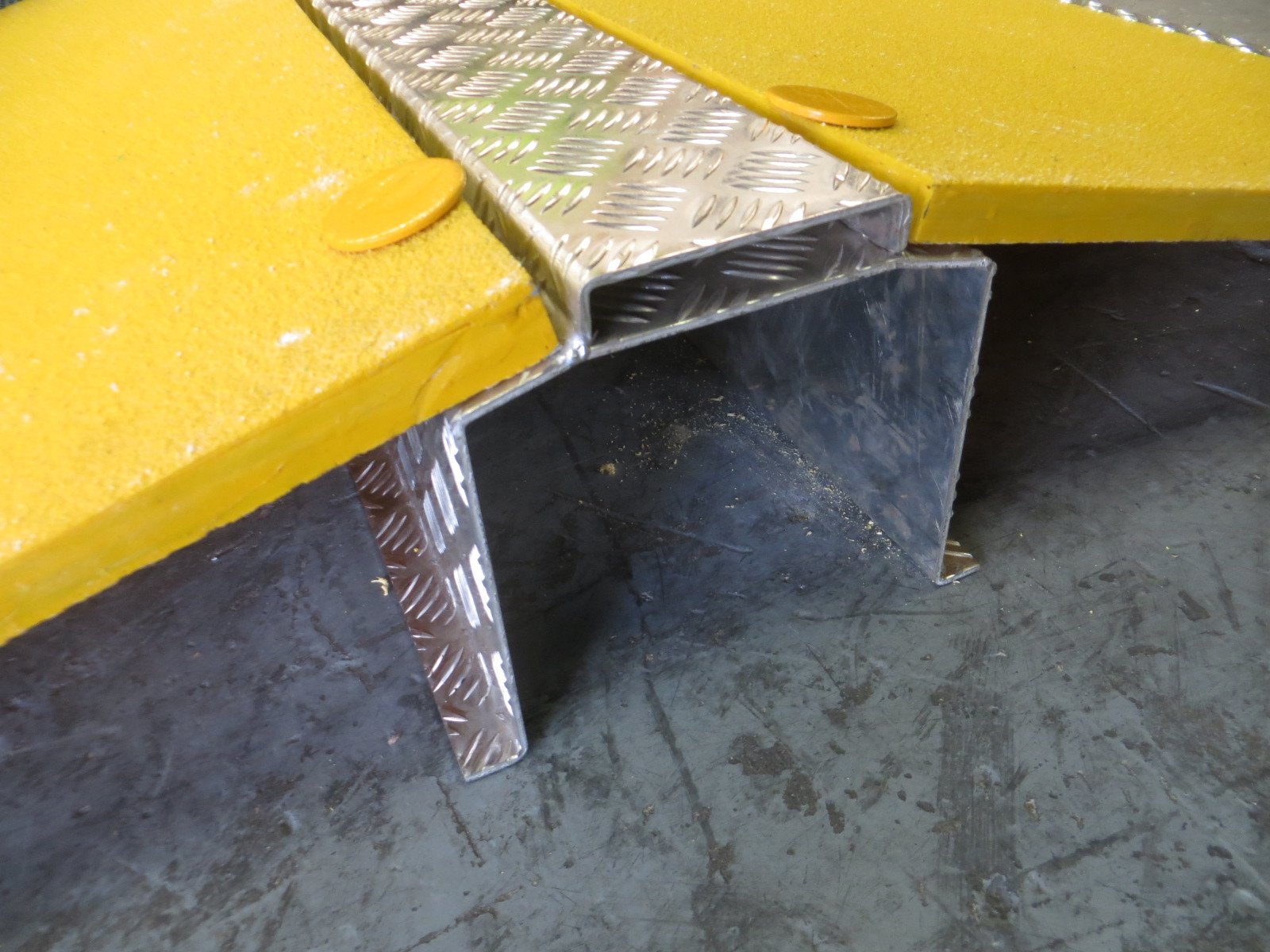

A high-quality pedestrian ramp with a three-part, easy-to-assemble design, the Wide Aluminium Cable Protector Ramp with Z Clips in Yellow protects essential infrastructure, such as cables and hoses. At the same time, it provides pedestrians with a safe and secure means to move around the workplace. The ramp features solid-topped GRP grating, a welded aluminium tunnel, and the Z clips required to secure these components.
Wide Aluminium Cable Protector Ramp with Z Clips technical specifications
The Wide Aluminium Cable Protector Ramp with Z Clips measures 2080 mm x 995 mm x 235 mm and has a maximum load capacity of 200 kg. The channel is 225 mm wide and 200 mm high, so the ramp can accommodate cables and hoses with a maximum diameter of 200 mm.
For more information, contact our expert team at 0117 954 1117 or email info@provincialrubber.co.uk.
| Max Load | 200 kg |
|---|---|
| Channel | 210 x 150mm |
| Aluminium Tunnel | 225 wide x 200mm high |
| Max Hose/Cable diameter | 200mm |
