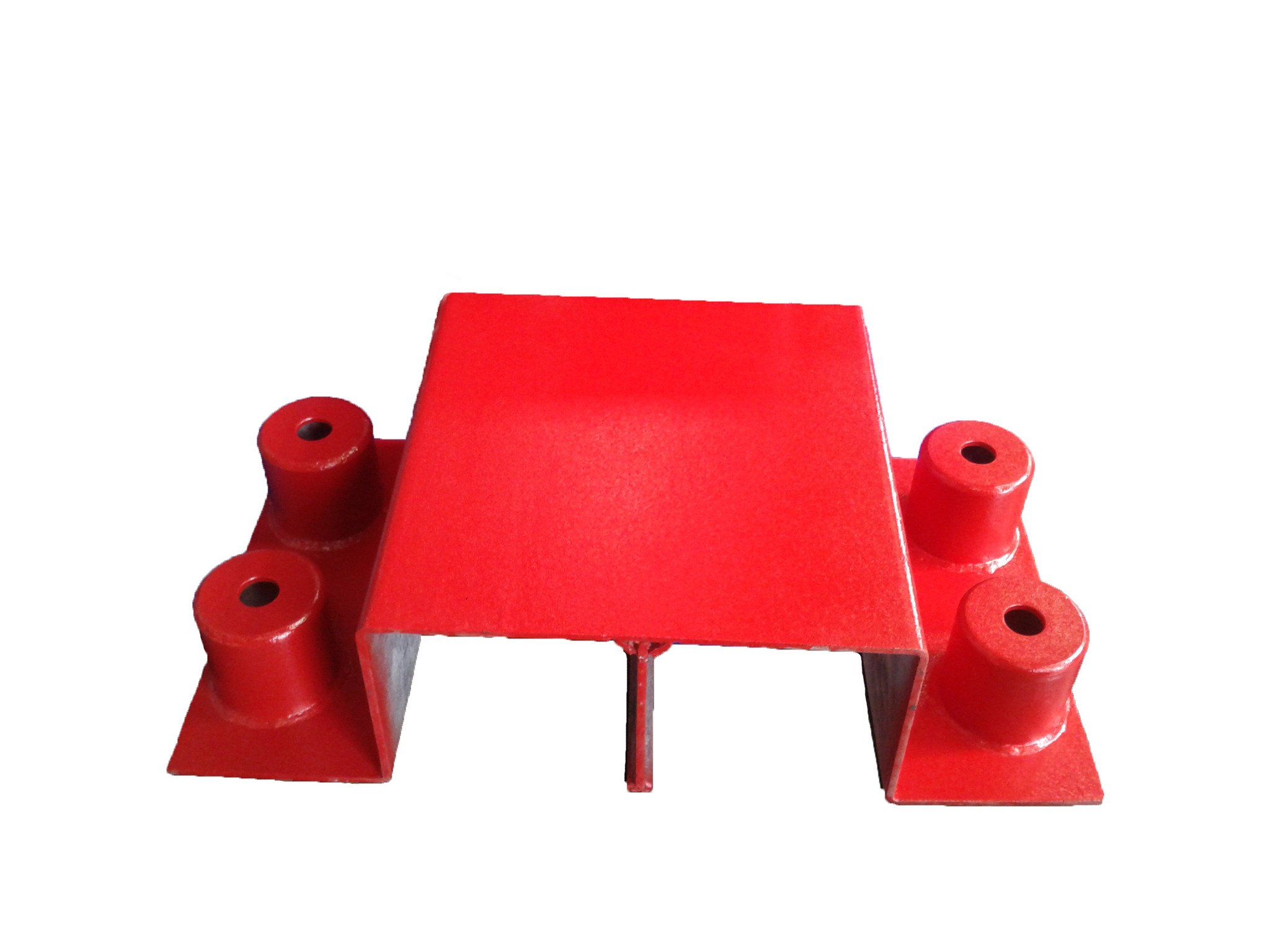

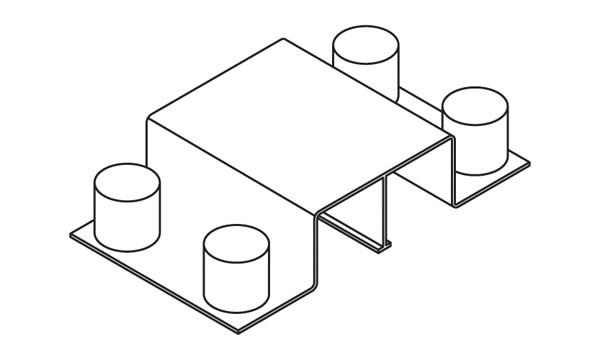

Steel Cable Ramp Central Bridge Module – Red
| Product Code: | WHHCR23 |
|---|---|
| Dimensions: | 370 x 400 x 190 mm |
| Weight: | 31 kg |
| Colour: | RAL3020 Red |
The Steel Cable Ramp Central Bridge Module in Red, made from high-quality steel, can accommodate two large hoses or cables measuring up to 177 mm in diameter. It acts as the central steel bridge section in our modular cable ramp solution, enabling vehicles to cross essential industrial infrastructure without causing damage.
Steel Cable Ramp Central Bridge Module technical specifications
The Steel Cable Ramp Central Bridge module measures 370 mm x 400 mm x 190 mm and is manufactured from 7 mm thick steel. It benefits from a high-vis red powder coating. By combining the central bridge module with the rubber components in our modular system, users can create a ramp system that measures at least 3,400 mm long. This is adequate enough to ensure most cars can cross without beaching. Complementary components in our modular ramp system include:
- Hose and Cable Protector Rubber Wedge Module - Black
- Cable Ramp Rubber Joining Block Module - Black
- Steel Cable Ramp Central Bridge Module - Yellow
For more information, contact our expert team at 0117 954 1117 or email info@provincialrubber.co.uk.
| Max Load | 44 Tonnes |
|---|---|
| Channels | 180mm width x 177mm depth |
