Vacupress Flex

Name: Vacupress Flex
SKU: PVCHSE001
Availability: InStock

From £554.40 EX VAT

Ø I.D.

£554.40 per coil (ex. VAT)

£665.28 (incl. VAT)

Product Code:

Description

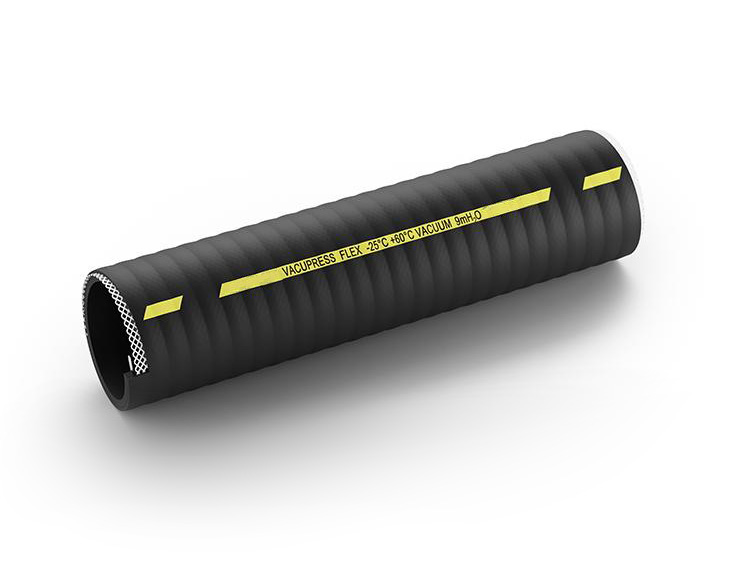

Dual layer plasticised PVC hose complete with embedded galvanised steel spiral and polyester yarn reinforcement. Designed for suction and delivery of liquids.

Technical Specification

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Total Thickness	Weight	Bending Radius	Working Pressure 1:3 23°C	Working Pressure 1:4 23°C	Bursting Pressure 23°C	Spiral Pitch	Ø Spiral	Coil Length	Vacuum 23°c	Spiral Direction
PVCHSE001-22		200 mm	222 mm	11 mm	10300 g/m	650 mm	3 bar	2.5 bar	9 bar	22 mm	3 mm	10 m	9 m h2o	right
PVCHSE001-23	8 inch	203 mm	225 mm	11 mm	10500 g/m	650 mm	3 bar	2.5 bar	9 bar	22 mm	3 mm	10 m	9 m h2o	right
PVCHSE001-01	3/4 inch	19 mm	28 mm	4.5 mm	475 g/m	70 mm	20 bar	16 bar	60 bar	8.5 mm	1 mm	60 m	9 m h2o	right
PVCHSE001-02	1 inch	25 mm	35.5 mm	5.2 mm	680 g/m	80 mm	16 bar	12 bar	48 bar	9 mm	1.2 mm	60 m	9 m h2o	right
PVCHSE001-03		30 mm	40.5 mm	5.2 mm	770 g/m	90 mm	16 bar	12 bar	48 bar	9.5 mm	1.2 mm	60 m	9 m h2o	right
PVCHSE001-04	1 1/4 inch	32 mm	42.5 mm	5.2 mm	800 g/m	100 mm	16 bar	12 bar	48 bar	9.5 mm	1.2 mm	60 m	9 m h2o	right
PVCHSE001-05		35 mm	48 mm	6.5 mm	1100 g/m	115 mm	14 bar	10 bar	43 bar	9.5 mm	1.4 mm	60 m	9 m h2o	right
PVCHSE001-06	1 1/2 inch	38 mm	51 mm	6.5 mm	1200 g/m	125 mm	14 bar	10 bar	42 bar	10.5 mm	1.4 mm	30 m	9 m h2o	right
PVCHSE001-07		40 mm	53 mm	6.5 mm	1220 g/m	130 mm	14 bar	10 bar	42 bar	11 mm	1.4 mm	30 m	9 m h2o	right
PVCHSE001-08	1 3/4 inch	45 mm	58 mm	6.5 mm	1400 g/m	140 mm	12 bar	10 bar	36 bar	11 mm	1.4 mm	30 m	9 m h2o	right
PVCHSE001-09	2 inch	50 mm	64 mm	6.5 mm	1600 g/m	150 mm	12 bar	10 bar	36 bar	11 mm	1.6 mm	30 m	9 m h2o	right
PVCHSE001-10		60 mm	74 mm	7 mm	2000 g/m	180 mm	12 bar	10 bar	36 bar	11 mm	1.6 mm	30 m	9 m h2o	right
PVCHSE001-11	2 1/2 inch	63 mm	77 mm	7 mm	2100 g/m	190 mm	12 bar	10 bar	36 bar	11 mm	1.6 mm	30 m	9 m h2o	right
PVCHSE001-12		75 mm	91 mm	8 mm	2950 g/m	190 mm	12 bar	10 bar	36 bar	13.5 mm	2 mm	30 m	9 m h2o	right
PVCHSE001-13	3 inch	76 mm	92 mm	8 mm	2970 g/m	210 mm	12 bar	9 bar	36 bar	13.5 mm	2 mm	30 m	9 m h2o	right
PVCHSE001-14		80 mm	96 mm	8 mm	3020 g/m	220 mm	10 bar	8 bar	30 bar	14 mm	2 mm	30 m	9 m h2o	right
PVCHSE001-15	3 1/2 inch	90 mm	107 mm	8.5 mm	3500 g/m	250 mm	10 bar	8 bar	30 bar	14 mm	2 mm	30 m	9 m h2o	right
PVCHSE001-16		100 mm	117 mm	8.5 mm	4050 g/m	300 mm	10 bar	8 bar	30 bar	14.5 mm	2 mm	30 m	9 m h2o	right
PVCHSE001-17	4 inch	102 mm	119 mm	8.5 mm	4150 g/m	300 mm	10 bar	8 bar	30 bar	14.5 mm	2 mm	30 m	9 m h2o	right
PVCHSE001-18		120 mm	138 mm	9 mm	5430 g/m	350 mm	8 bar	6 bar	24 bar	15 mm	2.5 mm	20 m	9 m h2o	right
PVCHSE001-19	5 inch	127 mm	145 mm	9 mm	5950 g/m	370 mm	7 bar	5 bar	22 bar	15 mm	2.5 mm	20 m	9 m h2o	right
PVCHSE001-20		150 mm	169 mm	9.5 mm	7000 g/m	480 mm	5 bar	3 bar	15 bar	15.5 mm	2.5 mm	20 m	9 m h2o	right
PVCHSE001-21	6 inch	152 mm	171 mm	9.5 mm	7050 g/m	480 mm	5 bar	3 bar	15 bar	15.5 mm	2.5 mm	20 m	9 m h2o	right
