Superflex Pu R (hk)

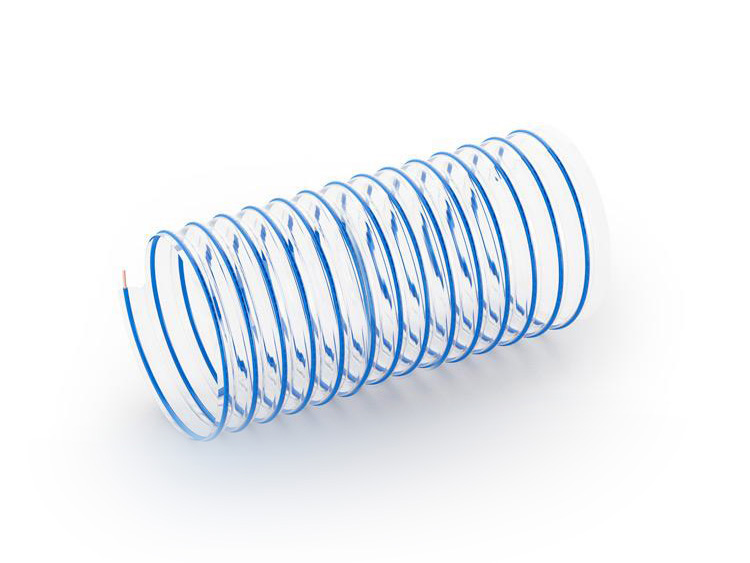

Polyurethane hose with copper-plated steel spiral. Designed for both the suction and transportation of dusts, chips and abrasive material.
| Product Code | Ø I.D. | Wall Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Vacuum 23°c | Spiral Pitch | Ø Spiral | Coil Length |
|---|---|---|---|---|---|---|---|---|---|
| PVCHSE075-01 | 38 mm | 0,55 mm | 230 g/m | 45 mm | 1,5 bar | 4.8 m h2o | 12 mm | 1,2x1,6 mm | 30 m |
| PVCHSE075-02 | 45 mm | 0,55 mm | 250 g/m | 55 mm | 1,3 bar | 4.0 m h2o | 12 mm | 1,2x1,6 mm | 30 m |
| PVCHSE075-03 | 51 mm | 0,55 mm | 290 g/m | 60 mm | 1,2 bar | 3.5 m h2o | 12 mm | 1,2x1,6 mm | 30 m |
| PVCHSE075-04 | 63 mm | 0,55 mm | 340 g/m | 70 mm | 0,9 bar | 2.5 m h2o | 12 mm | 1,2x1,6 mm | 30 m |
| PVCHSE075-05 | 76 mm | 0,65 mm | 470 g/m | 85 mm | 0,8 bar | 2.0 m h2o | 16 mm | 1,4x1,8 mm | 30 m |
| PVCHSE075-06 | 82 mm | 0,65 mm | 510 g/m | 90 mm | 0,7 bar | 2.0 m h2o | 16 mm | 1,4x1,8 mm | 30 m |
| PVCHSE075-07 | 90 mm | 0,65 mm | 530 g/m | 100 mm | 0,7 bar | 2.0 m h2o | 16 mm | 1,4x1,8 mm | 30 m |
| PVCHSE075-08 | 102 mm | 0,65 mm | 620 g/m | 110 mm | 0,6 bar | 1.5 m h2o | 16 mm | 1,4x1,8 mm | 30 m |
| PVCHSE075-09 | 110 mm | 0,65 mm | 650 g/m | 120 mm | 0,6 bar | 1.5 m h2o | 16 mm | 1,4x1,8 mm | 30 m |
| PVCHSE075-10 | 115 mm | 0,70 mm | 850 g/m | 125 mm | 0,6 bar | 1.5 m h2o | 18 mm | 1,8x2,2 mm | 30 m |
| PVCHSE075-11 | 120 mm | 0,70 mm | 900 g/m | 130 mm | 0,6 bar | 1.5 m h2o | 18 mm | 1,8x2,2 mm | 30 m |
| PVCHSE075-12 | 127 mm | 0,70 mm | 950 g/m | 135 mm | 0,5 bar | 1.5 m h2o | 18 mm | 1,8x2,2 mm | 30 m |
| PVCHSE075-13 | 140 mm | 0,70 mm | 1050 g/m | 150 mm | 0,5 bar | 1.5 m h2o | 18 mm | 1,8x2,2 mm | 30 m |
| PVCHSE075-14 | 152 mm | 0,70 mm | 1150 g/m | 160 mm | 0,4 bar | 1.0 m h2o | 18 mm | 1,8x2,2 mm | 30 m |
| PVCHSE075-15 | 160 mm | 0,70 mm | 1200 g/m | 170 mm | 0,4 bar | 1.0 m h2o | 18 mm | 1,8x2,2 mm | 30 m |
| PVCHSE075-16 | 180 mm | 0,70 mm | 1350 g/m | 190 mm | 0,4 bar | 1.0 m h2o | 18 mm | 1,8x2,2 mm | 30 m |
| PVCHSE075-17 | 203 mm | 0,80 mm | 1600 g/m | 220 mm | 0,3 bar | 1.0 m h2o | 22 mm | 2,0x2,5 mm | 30 m |
| PVCHSE075-18 | 229 mm | 0,80 mm | 1800 g/m | 240 mm | 0,3 bar | 0.5 m h2o | 22 mm | 2,0x2,5 mm | 15 m |
| PVCHSE075-19 | 254 mm | 0,80 mm | 2000 g/m | 270 mm | 0,2 bar | 0.5 m h2o | 22 mm | 2,0x2,5 mm | 15 m |
| PVCHSE075-20 | 305 mm | 0,80 mm | 2400 g/m | 320 mm | 0,2 bar | 0.4 m h2o | 22 mm | 2,0x2,5 mm | 15 m |
| PVCHSE075-21 | 315 mm | 0,80 mm | 2480 g/m | 330 mm | 0,2 bar | 0.4 m h2o | 22 mm | 2,0x2,5 mm | 15 m |
