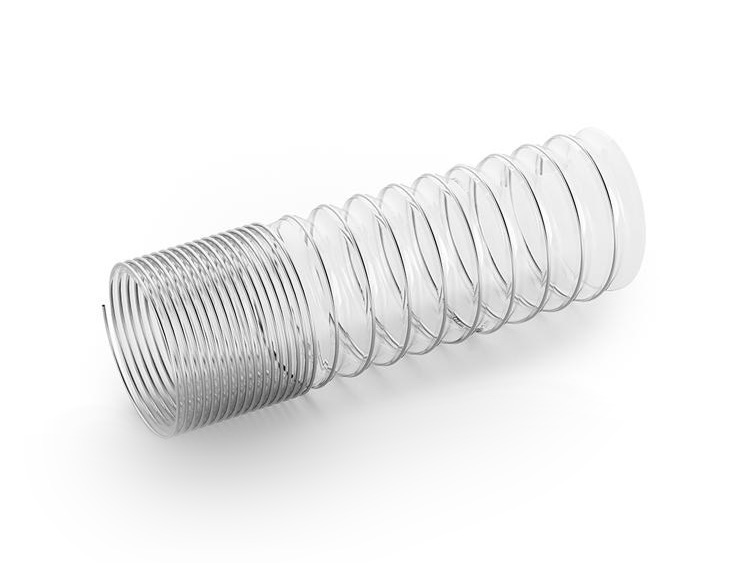

Superflex Pu L Compattato
Polyurethane (PU) hose with galvanised steel spiral. Designed for both the suction and transport of dusts, chips and abrasive material. Compacted version 6 mt.
| Product Code | Ø I.D. | Ø I.D. | Spiral Direction | Ø O.D. | Coil Length | Wall Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Vacuum 23°c | Spiral Pitch | Ø Spiral |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE067-01 | 30 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-02 | 35 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-03 | 40 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-04 | 45 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-05 | 50 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-06 | 55 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-07 | 60 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-08 | 63 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-09 | 70 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-10 | 76 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-11 | 80 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-12 | 90 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-13 | 100 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-14 | 110 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-15 | 115 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-16 | 120 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-17 | 125 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-18 | 130 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-19 | 140 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-20 | 150 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-21 | 160 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-22 | 165 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-23 | 170 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-24 | 180 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-25 | 200 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-26 | 220 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-27 | 250 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-28 | 280 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-29 | 300 mm | left | - | 6 m | - | - | - | - | - | - | - | |
| PVCHSE067-30 | 325 mm | left | 335 mm | 6 m | 0.6 mm | 1600 g/m | 65 mm | 0.02 bar | 0.03 m h2o | 36 mm | 2 mm | |
| PVCHSE067-31 | 350 mm | left | 360 mm | 6 m | 0.6 mm | 1750 g/m | 70 mm | 0.02 bar | 0.03 m h2o | 36 mm | 2 mm | |
| PVCHSE067-32 | 400 mm | left | 412 mm | 6 m | 0.6 mm | 2000 g/m | 80 mm | 0.02 bar | 0.02 m h2o | 36 mm | 2 mm | |
| PVCHSE067-33 | 450 mm | left | 462 mm | 6 m | 0.6 mm | 2300 g/m | 90 mm | 0.01 bar | 0.01 m h2o | 36 mm | 2 mm | |
| PVCHSE067-34 | 500 mm | left | 512 mm | 6 m | 0.6 mm | 2500 g/m | 100 mm | 0.01 bar | 0.01 m h2o | 36 mm | 2 mm | |
| PVCHSE067-35 | 550 mm | left | 562 mm | 6 m | 0.6 mm | 2700 g/m | 110 mm | 0.01 bar | 0.01 m h2o | 36 mm | 2 mm | |
| PVCHSE067-36 | 600 mm | left | 612 mm | 6 m | 0.6 mm | 3000 g/m | 120 mm | 0.01 bar | 0.01 m h2o | 36 mm | 2 mm |
