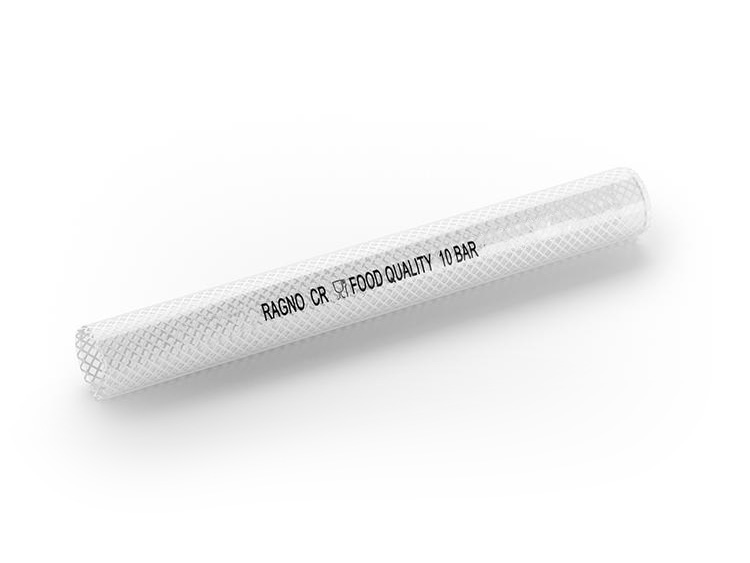

Ragno Cr

Ø I.D.

£0.00 per coil (ex. VAT)

£0.00 (incl. VAT)

Product Code:	PVCHSE096

Description

Soft PVC hose with a polyester yarn reinforcement. Designed for the passage of; cooling fluids, chemical solutions, food, and compressed air.

Technical Specification

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Total Thickness	Weight	Bending Radius	Working Pressure 1:3 23°C	Working Pressure 40°C	Working Pressure 60°C	Bursting Pressure 23°C	Coil Length
PVCHSE096-01		4 mm	10 mm	3 mm	80 g/m	12 mm	20 bar	16 bar	12 bar	60 bar	100 m
PVCHSE096-02	3/16 inch	5 mm	11 mm	3 mm	90 g/m	15 mm	20 bar	16 bar	12 bar	60 bar	100 m
PVCHSE096-03	1/4 inch	6 mm	11 mm	2.5 mm	80 g/m	19 mm	20 bar	16 bar	12 bar	60 bar	100 m
PVCHSE096-04	1/4 inch	6 mm	12 mm	3 mm	105 g/m	17 mm	20 bar	16 bar	12 bar	60 bar	100 m
PVCHSE096-05	1/4 inch	6 mm	14 mm	4 mm	145 g/m	15 mm	20 bar	16 bar	12 bar	60 bar	100 m
PVCHSE096-06		7 mm	13 mm	3 mm	115 g/m	20 mm	20 bar	16 bar	12 bar	60 bar	100 m
PVCHSE096-07	5/16 inch	8 mm	13 mm	2.5 mm	105 g/m	28 mm	18 bar	13 bar	9 bar	54 bar	100 m
PVCHSE096-08	5/16 inch	8 mm	14 mm	3 mm	125 g/m	25 mm	18 bar	13 bar	9 bar	54 bar	100 m
PVCHSE096-09	5/16 inch	8 mm	17 mm	4.5 mm	220 g/m	22 mm	18 bar	13 bar	9 bar	54 bar	100 m
PVCHSE096-10		9 mm	15 mm	3 mm	135 g/m	32 mm	18 bar	13 bar	9 bar	54 bar	100 m
PVCHSE096-11	3/8 inch	10 mm	15 mm	2.5 mm	120 g/m	36 mm	18 bar	13 bar	9 bar	54 bar	100 m
PVCHSE096-12	3/8 inch	10 mm	16 mm	3 mm	150 g/m	30 mm	18 bar	13 bar	9 bar	54 bar	100 m
PVCHSE096-13		12 mm	17 mm	2.5 mm	130 g/m	35 mm	12 bar	9 bar	6 bar	36 bar	50 m
PVCHSE096-14		12 mm	18 mm	3 mm	180 g/m	35 mm	12 bar	9 bar	6 bar	36 bar	50 m
PVCHSE096-15	1/2 inch	13 mm	18 mm	2.5 mm	150 g/m	43 mm	12 bar	9 bar	6 bar	36 bar	50 m
PVCHSE096-16	1/2 inch	13 mm	19 mm	3 mm	175 g/m	52 mm	12 bar	9 bar	6 bar	36 bar	50 m
PVCHSE096-17		15 mm	21 mm	3 mm	215 g/m	60 mm	10 bar	7 bar	4 bar	30 bar	50 m
PVCHSE096-18		15 mm	23 mm	4 mm	280 g/m	60 mm	10 bar	7 bar	4 bar	30 bar	50 m
PVCHSE096-19	5/8 inch	16 mm	21 mm	2.5 mm	185 g/m	62 mm	10 bar	7 bar	4 bar	30 bar	50 m
PVCHSE096-20	5/8 inch	16 mm	22 mm	3 mm	210 g/m	60 mm	10 bar	7 bar	4 bar	30 bar	50 m
PVCHSE096-21	3/4 inch	19 mm	25 mm	3 mm	260 g/m	70 mm	10 bar	7 bar	4 bar	30 bar	50 m
PVCHSE096-22	3/4 inch	19 mm	26 mm	3.5 mm	300 g/m	70 mm	10 bar	7 bar	4 bar	30 bar	50 m
PVCHSE096-23		22 mm	30 mm	4 mm	420 g/m	85 mm	8 bar	5 bar	3 bar	24 bar	50 m
PVCHSE096-24	1 inch	25 mm	32 mm	3.5 mm	390 g/m	150 mm	8 bar	5 bar	3 bar	24 bar	50 m
PVCHSE096-25	1 inch	25 mm	33 mm	4 mm	450 g/m	110 mm	8 bar	5 bar	3 bar	24 bar	50 m
PVCHSE096-26		30 mm	38 mm	4 mm	560 g/m	170 mm	8 bar	5 bar	3 bar	24 bar	50 m
PVCHSE096-27	1 1/4 inch	32 mm	42 mm	5 mm	660 g/m	200 mm	8 bar	4 bar	2 bar	24 bar	50 m
PVCHSE096-28		35 mm	45 mm	5 mm	750 g/m	250 mm	8 bar	4 bar	2 bar	24 bar	50 m
PVCHSE096-29	1 1/2 inch	38 mm	48 mm	5 mm	870 g/m	300 mm	8 bar	4 bar	2 bar	24 bar	50 m
PVCHSE096-30		40 mm	50 mm	5 mm	880 g/m	350 mm	8 bar	4 bar	2 bar	24 bar	50 m
PVCHSE096-31	1 3/4 inch	45 mm	55 mm	5 mm	1000 g/m	420 mm	8 bar	4 bar	2 bar	24 bar	50 m
PVCHSE096-32	2 inch	50 mm	60 mm	5 mm	1100 g/m	500 mm	8 bar	4 bar	2 bar	24 bar	25 m
PVCHSE096-33	2 inch	50 mm	62 mm	6 mm	1350 g/m	450 mm	8 bar	4 bar	2 bar	24 bar	25 m
