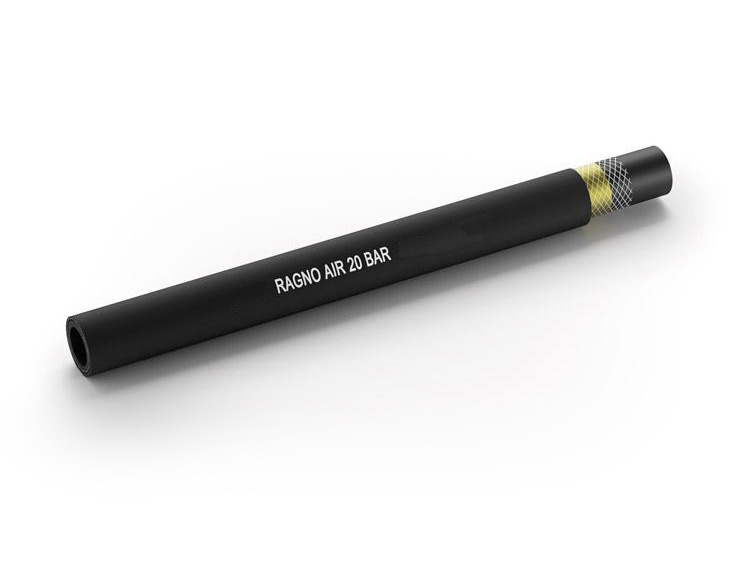

Ragno Air 20 Bar
| Product Code: | PVCHSE099 |
|---|
Soft PVC hose with a polyester yarn reinforcement and intermediate bonding PU adhesive layer. Designed for the passage of air under pressure.
| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Working Pressure 40°C | Working Pressure 60°C | Bursting Pressure 23°C | Coil Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE099-01 | 3/16 inch | 5 mm | 10.5 mm | 2.75 mm | 92 g/m | 20 mm | 20 bar | 18 bar | 16 bar | 60 bar | 100 m |
| PVCHSE099-02 | 1/4 inch | 6 mm | 14 mm | 4 mm | 175 g/m | 25 mm | 20 bar | 18 bar | 16 bar | 60 bar | 100 m |
| PVCHSE099-03 | 7 mm | 16 mm | 4.5 mm | 220 g/m | 20 mm | 20 bar | 18 bar | 16 bar | 60 bar | 100 m | |
| PVCHSE099-04 | 5/16 inch | 8 mm | 15 mm | 3.5 mm | 175 g/m | 28 mm | 20 bar | 18 bar | 16 bar | 60 bar | 100 m |
| PVCHSE099-05 | 5/16 inch | 8 mm | 17 mm | 4.5 mm | 245 g/m | 30 mm | 20 bar | 18 bar | 16 bar | 60 bar | 100 m |
| PVCHSE099-06 | 3/8 inch | 10 mm | 19 mm | 4.5 mm | 270 g/m | 32 mm | 20 bar | 18 bar | 16 bar | 60 bar | 100 m |
| PVCHSE099-07 | 1/2 inch | 13 mm | 23 mm | 5 mm | 380 g/m | 40 mm | 20 bar | 18 bar | 16 bar | 60 bar | 100 m |
| PVCHSE099-08 | 5/8 inch | 16 mm | 26 mm | 5 mm | 440 g/m | 50 mm | 20 bar | 18 bar | 16 bar | 60 bar | 100 m |
| PVCHSE099-09 | 3 inch | 19 mm | 30 mm | 5.5 mm | 560 g/m | 60 mm | 20 bar | 18 bar | 16 bar | 60 bar | 60 m |
| PVCHSE099-10 | 1 inch | 25 mm | 37 mm | 6 mm | 765 g/m | 85 mm | 20 bar | 18 bar | 16 bar | 60 bar | 60 m |
