Oregon Pu Et Antistatico
From £236.40 EX VAT

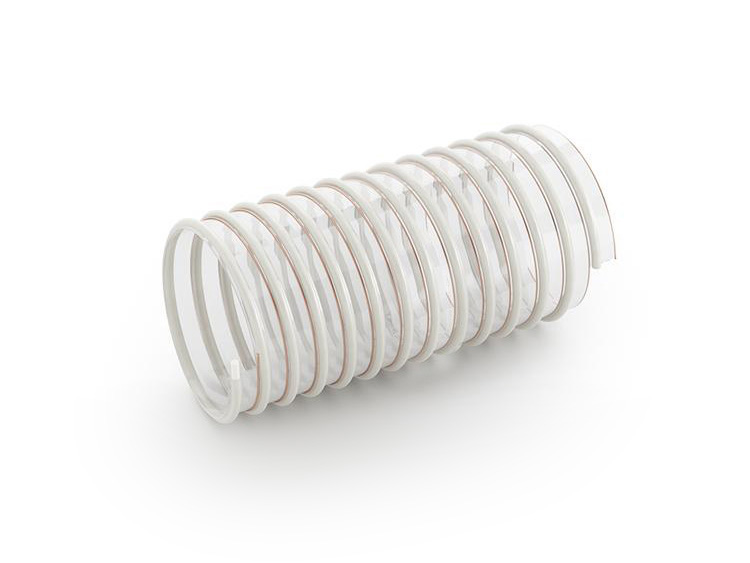

Polyurethane (PU) Polyether hose with PVC spiral and copper wire for antistatic rendering. Designed for both the suction and transport of abrasive materials and dry foods.
| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Wall Thickness | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Vacuum 23°c | Spiral Pitch | Coil Length | Spiral Direction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE054-01 | 1 inch | 25 mm | 30.9 mm | 0.5 mm | 2.8 mm | 190 g/m | 25 mm | 0.6 bar | 1.8 bar | 4 m h2o | 7.2 mm | 20 m | right |
| PVCHSE054-02 | 30 mm | 35.8 mm | 0.6 mm | 2.9 mm | 210 g/m | 30 mm | 0.6 bar | 1.8 bar | 4 m h2o | 7.2 mm | 20 m | right | |
| PVCHSE054-03 | 1 1/4 inch | 32 mm | 38 mm | 0.6 mm | 3 mm | 240 g/m | 32 mm | 0.6 bar | 1.8 bar | 4 m h2o | 8 mm | 20 m | right |
| PVCHSE054-04 | 35 mm | 41 mm | 0.6 mm | 3 mm | 250 g/m | 35 mm | 0.4 bar | 1.2 bar | 4 m h2o | 8 mm | 20 m | right | |
| PVCHSE054-05 | 1 1/2 inch | 38 mm | 44.4 mm | 0.6 mm | 3.2 mm | 310 g/m | 38 mm | 0.4 bar | 1.2 bar | 3 m h2o | 7.5 mm | 20 m | right |
| PVCHSE054-06 | 40 mm | 46 mm | 0.6 mm | 3 mm | 330 g/m | 40 mm | 0.4 bar | 1.2 bar | 3 m h2o | 8.3 mm | 20 m | right | |
| PVCHSE054-07 | 1 3/4 inch | 45 mm | 51.6 mm | 0.6 mm | 3.3 mm | 370 g/m | 45 mm | 0.4 bar | 1.2 bar | 3 m h2o | 9.5 mm | 20 m | right |
| PVCHSE054-08 | 2 inch | 50 mm | 58.4 mm | 0.7 mm | 3.7 mm | 440 g/m | 50 mm | 0.4 bar | 1.2 bar | 3 m h2o | 10.1 mm | 20 m | right |
| PVCHSE054-09 | 60 mm | 68 mm | 0.7 mm | 4 mm | 500 g/m | 60 mm | 0.4 bar | 1.2 bar | 3 m h2o | 11.3 mm | 20 m | right | |
| PVCHSE054-10 | 2 1/2 inch | 63 mm | 71.5 mm | 0.7 mm | 4 mm | 530 g/m | 63 mm | 0.3 bar | 0.9 bar | 3 m h2o | 10.5 mm | 20 m | right |
| PVCHSE054-11 | 70 mm | 78.4 mm | 0.7 mm | 4.2 mm | 660 g/m | 70 mm | 0.3 bar | 0.9 bar | 3 m h2o | 13.2 mm | 20 m | right | |
| PVCHSE054-12 | 75 mm | 83.4 mm | 0.7 mm | 4.2 mm | 660 g/m | 75 mm | 0.3 bar | 0.9 bar | 3 m h2o | 13.2 mm | 20 m | right | |
| PVCHSE054-13 | 3 inch | 76 mm | 84.6 mm | 0.7 mm | 4.2 mm | 660 g/m | 75 mm | 0.3 bar | - | 3 m h2o | 12.3 mm | 20 m | right |
| PVCHSE054-14 | 80 mm | 89.5 mm | 0.7 mm | 4.5 mm | 740 g/m | 80 mm | 0.2 bar | 0.6 bar | 3 m h2o | 14 mm | 20 m | right | |
| PVCHSE054-15 | 3 1/2 inch | 90 mm | 99.6 mm | 0.8 mm | 4.8 mm | 810 g/m | 90 mm | 0.2 bar | 0.6 bar | 3 m h2o | 15 mm | 20 m | right |
| PVCHSE054-16 | 100 mm | 109.6 mm | 0.8 mm | 4.8 mm | 920 g/m | 100 mm | 0.2 bar | 0.6 bar | 3 m h2o | 14 mm | 20 m | right | |
| PVCHSE054-17 | 4 inch | 102 mm | 111.2 mm | 0.8 mm | 4.8 mm | 920 g/m | 100 mm | 0.2 bar | 0.6 bar | 3 m h2o | 14 mm | 20 m | right |
| PVCHSE054-18 | 110 mm | 121 mm | 0.8 mm | 5.5 mm | 1120 g/m | 110 mm | 0.2 bar | 0.6 bar | 3 m h2o | 15 mm | 20 m | right | |
| PVCHSE054-19 | 120 mm | 131.5 mm | 0.8 mm | 5.5 mm | 1180 g/m | 120 mm | 0.15 bar | 0.45 bar | 3 m h2o | 17 mm | 20 m | right | |
| PVCHSE054-20 | 125 mm | 136.5 mm | 0.8 mm | 5.5 mm | 1250 g/m | 125 mm | 0.15 bar | 0.45 bar | 3 m h2o | 17.5 mm | 20 m | right | |
| PVCHSE054-21 | 5 inch | 127 mm | 138 mm | 0.8 mm | 5.5 mm | 1250 g/m | 125 mm | 0.15 bar | - | 3 m h2o | 17.5 mm | 20 m | right |
| PVCHSE054-22 | 130 mm | 142 mm | 0.8 mm | 6 mm | 1350 g/m | 130 mm | 0.15 bar | 0.3 bar | 3 m h2o | 19 mm | 20 m | right | |
| PVCHSE054-23 | 140 mm | 152 mm | 0.9 mm | 6 mm | 1500 g/m | 140 mm | 0.1 bar | 0.3 bar | 3 m h2o | 19 mm | 20 m | right | |
| PVCHSE054-24 | 150 mm | 162 mm | 0.9 mm | 6 mm | 1600 g/m | 150 mm | 0.1 bar | 0.3 bar | 3 m h2o | 20 mm | 20 m | right | |
| PVCHSE054-25 | 6 inch | 152 mm | 164.4 mm | 0.9 mm | 6 mm | 1650 g/m | 150 mm | 0.1 bar | 0.3 bar | 3 m h2o | 19.5 mm | 20 m | right |
| PVCHSE054-26 | 160 mm | 172.4 mm | 0.9 mm | 6.2 mm | 1780 g/m | 160 mm | 0.1 bar | 0.3 bar | 3 m h2o | 20 mm | 20 m | right | |
| PVCHSE054-27 | 180 mm | 193 mm | 0.9 mm | 6.5 mm | 2100 g/m | 180 mm | 0.1 bar | 0.3 bar | 3 m h2o | 21 mm | 10 m | right | |
| PVCHSE054-28 | 200 mm | 214 mm | 0.9 mm | 7 mm | 2280 g/m | 200 mm | 0.1 bar | 0.3 bar | 3 m h2o | 21.5 mm | 10 m | right |
