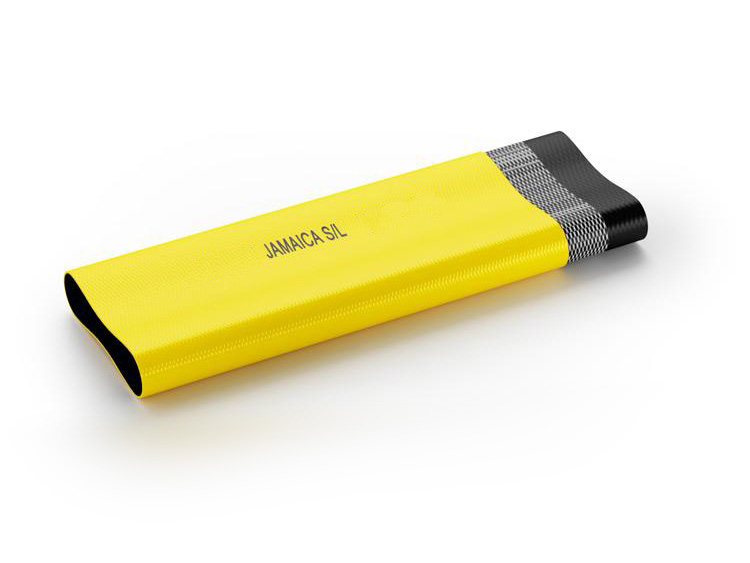

Jamaica S/L
From £5.70 EX VAT
Flexible lay-flat PVC hose, with a polyester yarn reinforcement. Designed to be resistant to elongation and for the pressurised delivery of liquids in general.
| Product Code | Ø I.D. | Ø O.D. | Wall Thickness | Weight | Working Pressure 1:3 23°C | Working Pressure 40°C | Bursting Pressure 23°C | Tensile Breaking Load | Coil Length |
|---|---|---|---|---|---|---|---|---|---|
| PVCHSE114-01 | 25 mm | 27 mm | 1 mm | 115 g/m | 7 bar | 4.0 bar | 21.0 bar | 224 kg | 50-100 m |
| PVCHSE114-02 | 32 mm | 34 mm | 1 mm | 150 g/m | 7 bar | 4.0 bar | 21.0 bar | 288 kg | 50-100 m |
| PVCHSE114-03 | 38 mm | 40 mm | 1 mm | 210 g/m | 5 bar | 3.0 bar | 15.0 bar | 335 kg | 50-100 m |
| PVCHSE114-04 | 40 mm | 42 mm | 1 mm | 225 g/m | 5 bar | 3.0 bar | 15.0 bar | 350 kg | 50-100 m |
| PVCHSE114-05 | 51 mm | 54 mm | 1,5 mm | 280 g/m | 5 bar | 3.0 bar | 15.0 bar | 445 kg | 50-100 m |
| PVCHSE114-06 | 60 mm | 63 mm | 1,5 mm | 350 g/m | 4 bar | 2.4 bar | 12.0 bar | 495 kg | 50-100 m |
| PVCHSE114-07 | 63 mm | 66 mm | 1,5 mm | 370 g/m | 4 bar | 2.4 bar | 12.0 bar | 530 kg | 50-100 m |
| PVCHSE114-08 | 76 mm | 79 mm | 1,5 mm | 475 g/m | 4 bar | 2.4 bar | 12.0 bar | 625 kg | 50-100 m |
| PVCHSE114-09 | 80 mm | 83 mm | 1,5 mm | 490 g/m | 4 bar | 2.4 bar | 12.0 bar | 655 kg | 50-100 m |
| PVCHSE114-10 | 102 mm | 105.5 mm | 1,6 mm | 650 g/m | 4 bar | 2.4 bar | 12.0 bar | 830 kg | 50-100 m |
| PVCHSE114-11 | 152 mm | 156 mm | 2 mm | 1250 g/m | 3 bar | 1.8 bar | 9.0 bar | 1250 kg | 50-100 m |
| PVCHSE114-12 | 204 mm | 209 mm | 2,5 mm | 1700 g/m | 2,5 bar | 1.5 bar | 8.0 bar | 1700 kg | 50-100 m |
