Jamaica S
From £306.00 EX VAT

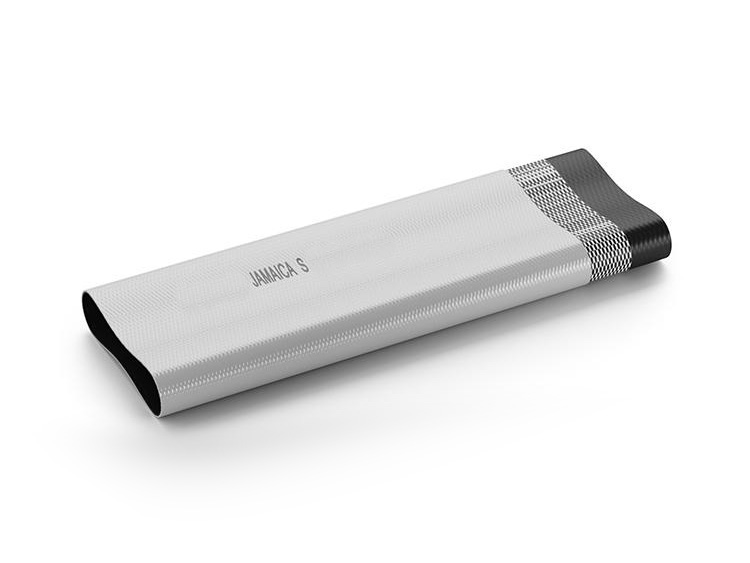

Flexible lay-flat PVC hose with a polyester yarn reinforcement. Designed to be resistant to elongation and for the pressurised delivery of liquids in general.
| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Working Pressure 1:3 23°C | Working Pressure 40°C | Working Pressure 60°C | Bursting Pressure 23°C | Tensile Strength | Tensile Breaking Load | Coil Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE113-01 | 1 1/2 inch | 38 mm | 40 mm | 1 mm | 175 g/m | 2.5 bar | 1.5 bar | 1 bar | 7.5 bar | 144 kg | 335 kg | 100 m |
| PVCHSE113-02 | 40 mm | 42 mm | 1 mm | 180 g/m | 2.5 bar | 1.5 bar | 1 bar | 7.5 bar | 150 kg | 350 kg | 100 m | |
| PVCHSE113-03 | 1 3/4 inch | 45 mm | 47 mm | 1 mm | 210 g/m | 2.5 bar | 1.5 bar | 1 bar | 7.5 bar | 165 kg | 384 kg | 100 m |
| PVCHSE113-04 | 2 inch | 51 mm | 53 mm | 1 mm | 270 g/m | 2.5 bar | 1.5 bar | 1 bar | 7.5 bar | 190 kg | 445 kg | 100 m |
| PVCHSE113-05 | 60 mm | 63 mm | 1.5 mm | 300 g/m | 2 bar | 1 bar | 0.5 bar | 6 bar | 212 kg | 495 kg | 100 m | |
| PVCHSE113-06 | 2 1/2 inch | 63 mm | 66 mm | 1.5 mm | 310 g/m | 2 bar | 1 bar | 0.5 bar | 6 bar | 228 kg | 530 kg | 100 m |
| PVCHSE113-07 | 3 inch | 76 mm | 79 mm | 1.5 mm | 380 g/m | 2 bar | 1 bar | 0.5 bar | 6 bar | 268 kg | 625 kg | 100 m |
| PVCHSE113-08 | 80 mm | 83 mm | 1.5 mm | 390 g/m | 1.5 bar | 0.8 bar | 0.3 bar | 4.5 bar | 280 kg | 655 kg | 100 m | |
| PVCHSE113-09 | 4 inch | 102 mm | 105 mm | 1.5 mm | 500 g/m | 1.5 bar | 0.8 bar | 0.3 bar | 4.5 bar | 356 kg | 830 kg | 100 m |
| PVCHSE113-10 | 6 inch | 152 mm | 156 mm | 2 mm | 1050 g/m | 1 bar | 0.5 bar | 0.2 bar | 3 bar | 530 kg | 1250 kg | 100 m |
