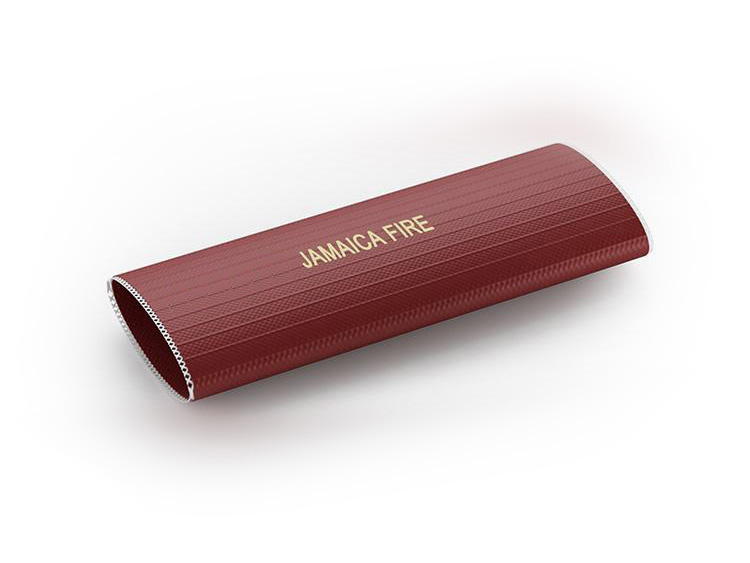

Jamaica Fire
Flexible lay-flat Nitrile Rubber (NBR) hose with polyester yarn reinforcement. Designed to be resistant to elongation and for the pressurised delivery of liquids in general.
| Product Code | Ø I.D. | Ø I.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Tensile Strength | Coil Length |
|---|---|---|---|---|---|---|---|---|---|
| PVCHSE116-01 | 1 inch | 25 mm | 2.25 mm | 240 g/m | 500 mm | 30 bar | 90 bar | 1350 kg | 60 m |
| PVCHSE116-02 | 1 3/4 inch | 45 mm | 2.25 mm | 375 g/m | 900 mm | 20 bar | 60 bar | 2400 kg | 60 m |
| PVCHSE116-03 | 2 3/4 inch | 70 mm | 2.40 mm | 650 g/m | 1600 mm | 20 bar | 55 bar | 3800 kg | 60 m |
