Vacupress Cristal

Name: Vacupress Cristal
SKU: PVCHSE005
Availability: InStock

From £617.40 EX VAT

Ø I.D.

£617.40 per coil (ex. VAT)

£740.88 (incl. VAT)

Product Code:	PVCHSE005

Description

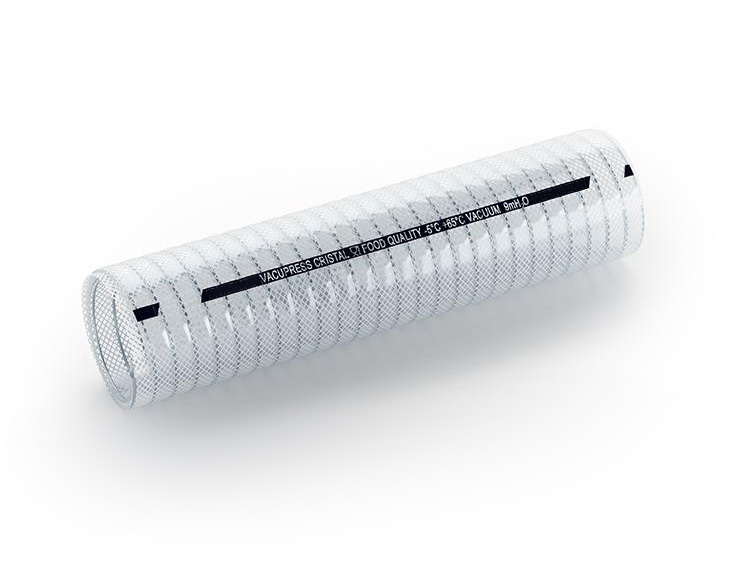

Two-layer plasticised PVC hose with embedded galvanised steel spiral and polyester yarn reinforcement. Designed for suction and delivery of food liquids.

Technical Specification

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Total Thickness	Weight	Bending Radius	Working Pressure 1:3 23°C	Working Pressure 1:4 23°C	Bursting Pressure 23°C	Vacuum 23°c	Spiral Pitch	Spiral Direction	Ø Spiral	Coil Length
PVCHSE005-01	3/4 inch	19 mm	28 mm	4.5 mm	450 g/m	80 mm	20 bar	15 bar	60 bar	9 m h2o	8.5 mm	right	1 mm	60 m
PVCHSE005-02	1 inch	25 mm	35.5 mm	5.25 mm	670 g/m	90 mm	20 bar	15 bar	60 bar	9 m h2o	9 mm	right	1.2 mm	60 m
PVCHSE005-03		30 mm	40.5 mm	5.25 mm	770 g/m	105 mm	16 bar	15 bar	48 bar	9 m h2o	9.5 mm	right	1.2 mm	60 m
PVCHSE005-04	1 1/4 inch	32 mm	42.5 mm	5.25 mm	800 g/m	110 mm	16 bar	12 bar	48 bar	9 m h2o	9.5 mm	right	1.2 mm	60 m
PVCHSE005-05		35 mm	48 mm	6.5 mm	1100 g/m	125 mm	14 bar	10 bar	42 bar	9 m h2o	10 mm	right	1.4 mm	60 m
PVCHSE005-06	1 1/2 inch	38 mm	51 mm	6.5 mm	1150 g/m	135 mm	14 bar	10 bar	42 bar	9 m h2o	10.5 mm	right	1.4 mm	30 m
PVCHSE005-07		40 mm	53 mm	6.5 mm	1200 g/m	140 mm	14 bar	10 bar	42 bar	9 m h2o	11 mm	right	1.4 mm	30 m
PVCHSE005-08	1 3/4 inch	45 mm	58 mm	6.5 mm	1400 g/m	155 mm	14 bar	10 bar	42 bar	9 m h2o	11 mm	right	1.4 mm	30 m
PVCHSE005-09	2 inch	50 mm	63.5 mm	6.5 mm	1600 g/m	170 mm	14 bar	10 bar	42 bar	9 m h2o	11 mm	right	1.6 mm	30 m
PVCHSE005-10		60 mm	74 mm	7 mm	1980 g/m	200 mm	12 bar	10 bar	36 bar	9 m h2o	11 mm	right	1.6 mm	30 m
PVCHSE005-11	2 1/2 inch	63 mm	77 mm	7 mm	2050 g/m	210 mm	12 bar	10 bar	36 bar	9 m h2o	11 mm	right	1.6 mm	30 m
PVCHSE005-12		70 mm	85.5 mm	7.8 mm	2550 g/m	240 mm	12 bar	10 bar	36 bar	9 m h2o	13.5 mm	right	2 mm	30 m
PVCHSE005-13	3 inch	76 mm	92 mm	8 mm	2800 g/m	250 mm	12 bar	9 bar	36 bar	9 m h2o	13.5 mm	right	2 mm	30 m
PVCHSE005-14		80 mm	96 mm	8 mm	2850 g/m	300 mm	10 bar	8 bar	30 bar	9 m h2o	14 mm	right	2 mm	30 m
PVCHSE005-15	3 1/2 inch	90 mm	106.5 mm	8.25 mm	3300 g/m	350 mm	10 bar	8 bar	30 bar	9 m h2o	14 mm	right	2 mm	30 m
PVCHSE005-16	4 inch	102 mm	119 mm	8.5 mm	3900 g/m	400 mm	10 bar	8 bar	30 bar	9 m h2o	14.5 mm	right	2 mm	30 m
PVCHSE005-17		105 mm	122 mm	8.5 mm	4000 g/m	420 mm	10 bar	8 bar	30 bar	9 m h2o	14.5 mm	right	2 mm	30 m
PVCHSE005-18		120 mm	138 mm	9 mm	4800 g/m	480 mm	8 bar	6 bar	24 bar	9 m h2o	15 mm	right	2.5 mm	20 m
PVCHSE005-19	5 inch	127 mm	145 mm	9 mm	5200 g/m	500 mm	7 bar	5 bar	21 bar	9 m h2o	15 mm	right	2.5 mm	20 m
PVCHSE005-20		150 mm	169 mm	9.5 mm	6650 g/m	600 mm	5 bar	3 bar	15 bar	9 m h2o	15.5 mm	right	2.5 mm	20 m
PVCHSE005-21	6 inch	152 mm	171 mm	9.5 mm	6700 g/m	600 mm	5 bar	3 bar	15 bar	9 m h2o	15.5 mm	right	2.5 mm	20 m
PVCHSE005-22		200 mm	222 mm	11 mm	9700 g/m	650 mm	3 bar	2.5 bar	9 bar	9 m h2o	11 mm	right	3 mm	10 m
PVCHSE005-23	8 inch	203 mm	225 mm	11 mm	10000 g/m	650 mm	3 bar	2.5 bar	9 bar	9 m h2o	11 mm	right	3 mm	10 m
