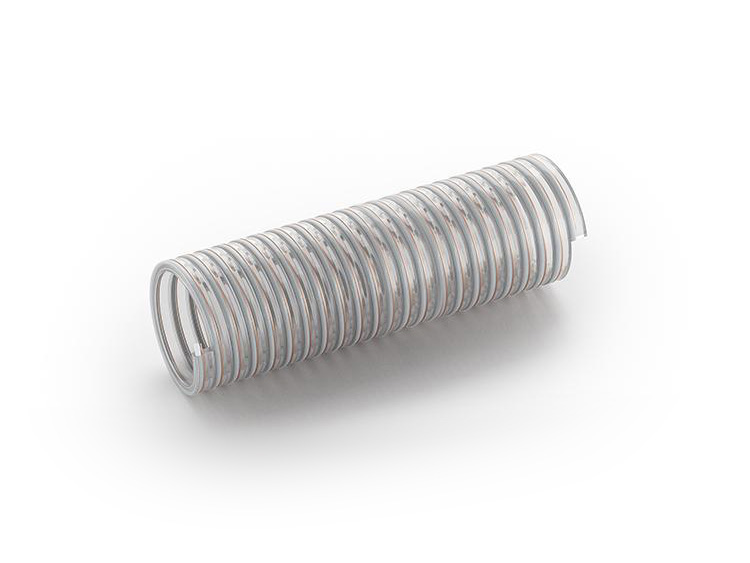

Luisiana Pu Antistatico
From £14.10 EX VAT
| Product Code: | PVCHSE026 |
|---|
PVC hose with rigid PVC spiral. Under layer in PU with a copper wire for making the hose antistatic when needed. Designed for conveying and carrying abrasive and granular materials.
| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Liner Thickness | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Vacuum 23°c | Spiral Pitch | Spiral Direction | Coil Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE026-01 | 30 mm | 37.5 mm | 0.6 mm | 3.5 mm | 450 g/m | 150 mm | 5 bar | 15 bar | 7 m h2o | 7.5 mm | right | 30 m | |
| PVCHSE026-02 | 1 1/2 inch | 38 mm | 45 mm | 0.7 mm | 3.5 mm | 500 g/m | 190 mm | 5 bar | 15 bar | 7 m h2o | 8 mm | right | 30 m |
| PVCHSE026-03 | 40 mm | 48 mm | 0.7 mm | 4 mm | 630 g/m | 200 mm | 5 bar | 15 bar | 7 m h2o | 9 mm | right | 30 m | |
| PVCHSE026-04 | 2 inch | 50 mm | 59.4 mm | 0.8 mm | 4.5 mm | 900 g/m | 250 mm | 4 bar | 12 bar | 7 m h2o | 10.5 mm | right | 30 m |
| PVCHSE026-05 | 60 mm | 70.5 mm | 0.9 mm | 5 mm | 1100 g/m | 300 mm | 4 bar | 12 bar | 7 m h2o | 11 mm | right | 30 m | |
| PVCHSE026-06 | 70 mm | 81 mm | 0.9 mm | 5.25 mm | 1200 g/m | 350 mm | 4 bar | 12 bar | 7 m h2o | 12.5 mm | right | 30 m | |
| PVCHSE026-07 | 3 inch | 76 mm | 87 mm | 0.9 mm | 5.5 mm | 1400 g/m | 375 mm | 3.5 bar | 10.5 bar | 7 m h2o | 13.5 mm | right | 30 m |
| PVCHSE026-08 | 80 mm | 91 mm | 0.9 mm | 5.5 mm | 1500 g/m | 400 mm | 3.5 bar | 10.5 bar | 7 m h2o | 14 mm | right | 30 m | |
| PVCHSE026-09 | 3 1/2 inch | 90 mm | 101 mm | 0.9 mm | 5.5 mm | 1750 g/m | 450 mm | 3.5 bar | 10.5 bar | 7 m h2o | 14 mm | right | 30 m |
| PVCHSE026-10 | 100 mm | 111 mm | 1 mm | 5.5 mm | 2000 g/m | 500 mm | 3 bar | 9 bar | 7 m h2o | 14.5 mm | right | 30 m | |
| PVCHSE026-11 | 150 mm | 166 mm | 1.2 mm | 8 mm | 4100 g/m | 900 mm | 3 bar | 9 bar | 6 m h2o | 20 mm | right | 30 m |
