Luisiana Antistatico
From £11.22 EX VAT
| Product Code: | PVCHSE021 |
|---|

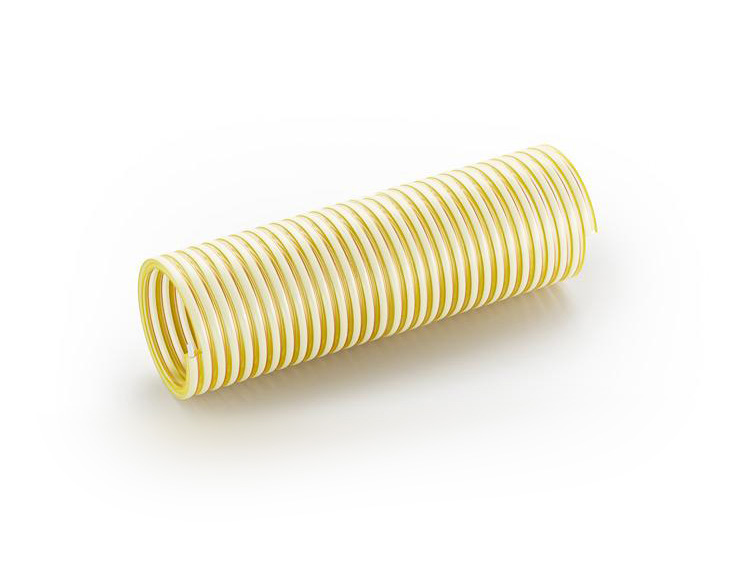

PVC hose with rigid PVC spiral and copper wire for making the hose antistatic. Designed for both the delivery and suction of food liquids.
| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Vacuum 23°c | Spiral Pitch | Spiral Direction | Coil Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE021-01 | 18 mm | 24 mm | 3 mm | 260 g/m | 70 mm | 8 bar | 7 m h2o | 6 mm | right | 50 m | |
| PVCHSE021-02 | 20 mm | 26.2 mm | 3.1 mm | 275 g/m | 75 mm | 8 bar | 7 m h2o | 6.5 mm | right | 50 m | |
| PVCHSE021-03 | 22 mm | 28.4 mm | 3.2 mm | 300 g/m | 80 mm | / bar | / m h2o | 7 mm | right | 50 m | |
| PVCHSE021-04 | 1 inch | 25 mm | 31.6 mm | 3.3 mm | 330 g/m | 120 mm | 8 bar | 7 m h2o | 7.4 mm | right | 50 m |
| PVCHSE021-05 | 30 mm | 37 mm | 3.5 mm | 420 g/m | 140 mm | 7 bar | 7 m h2o | 7.5 mm | right | 50 m | |
| PVCHSE021-06 | 1 1/4 inch | 32 mm | 39.2 mm | 3.6 mm | 460 g/m | 150 mm | 7 bar | 7 m h2o | 7.7 mm | right | 50 m |
| PVCHSE021-07 | 35 mm | 42.2 mm | 3.6 mm | 500 g/m | 160 mm | 7 bar | 7 m h2o | 7.7 mm | right | 50 m | |
| PVCHSE021-08 | 1 1/2 inch | 38 mm | 45.4 mm | 3.7 mm | 550 g/m | 170 mm | 6 bar | 7 m h2o | 7.6 mm | right | 50 m |
| PVCHSE021-09 | 40 mm | 47.6 mm | 3.8 mm | 610 g/m | 180 mm | 6 bar | 7 m h2o | 7.8 mm | right | 50 m | |
| PVCHSE021-10 | 1 3/4 inch | 45 mm | 52.4 mm | 3.7 mm | 670 g/m | 200 mm | 6 bar | 7 m h2o | 8 mm | right | 50 m |
| PVCHSE021-11 | 2 inch | 50 mm | 58.2 mm | 4.1 mm | 810 g/m | 220 mm | 6 bar | 7 m h2o | 8.3 mm | right | 50 m |
| PVCHSE021-12 | 2 inch | 51 mm | - | - | - | - | - | - | - | right | 50 m |
| PVCHSE021-13 | 55 mm | 63.6 mm | 4.3 mm | 860 g/m | 248 mm | 6 bar | 7 m h2o | 9.8 mm | right | 50 m | |
| PVCHSE021-14 | 60 mm | 68.4 mm | 4.2 mm | 970 g/m | 270 mm | 5 bar | 7 m h2o | 8.5 mm | right | 50 m | |
| PVCHSE021-15 | 2 1/2 inch | 63 mm | 71.5 mm | 4 mm | 1040 g/m | 290 mm | 5 bar | 7 m h2o | 8.5 mm | right | 50 m |
| PVCHSE021-16 | 70 mm | 78.4 mm | 4.2 mm | 1200 g/m | 320 mm | 4 bar | 7 m h2o | 9 mm | right | 50 m | |
| PVCHSE021-17 | 75 mm | 85.4 mm | 5.2 mm | 1380 g/m | 350 mm | 4 bar | 7 m h2o | 9.5 mm | right | 50 m | |
| PVCHSE021-18 | 3 inch | 76 mm | - | - | - | - | - | - | - | right | 25 m |
| PVCHSE021-19 | 80 mm | 90.6 mm | 5.3 mm | 1560 g/m | 360 mm | 4 bar | 7 m h2o | - | right | 25 m | |
| PVCHSE021-20 | 3 inch | 89 mm | - | - | - | - | - | - | - | right | 25 m |
| PVCHSE021-21 | 3 inch | 90 mm | 100.6 mm | 5.3 mm | 1850 g/m | 430 mm | 4 bar | 7 m h2o | - | right | 25 m |
| PVCHSE021-22 | 100 mm | 112 mm | 6 mm | 2200 g/m | 480 mm | 4 bar | 7 m h2o | - | right | 25 m | |
| PVCHSE021-23 | 4 inch | 102 mm | 114.2 mm | 6.3 mm | 2160 g/m | 480 mm | 4 bar | 7 m h2o | - | right | 25 m |
| PVCHSE021-24 | 110 mm | 122 mm | 6 mm | 2500 g/m | 530 mm | 4 bar | 5 m h2o | - | right | 25 m | |
| PVCHSE021-25 | 120 mm | 132.4 mm | 6.2 mm | 2850 g/m | 680 mm | 3 bar | 5 m h2o | - | right | 25 m | |
| PVCHSE021-26 | 125 mm | 137.6 mm | 6.3 mm | 3130 g/m | 730 mm | 3 bar | 5 m h2o | - | right | 25 m | |
| PVCHSE021-27 | 5 inch | 127 mm | 127 mm | 6.8 mm | 3130 g/m | / mm | 3 bar | 5 m h2o | - | right | 25 m |
| PVCHSE021-28 | 150 mm | 164.2 mm | 7.2 mm | 4250 g/m | 810 mm | 3 bar | 5 m h2o | - | right | 25 m | |
| PVCHSE021-29 | 6 inch | 152 mm | 167.2 mm | 7.4 mm | 4250 g/m | / mm | 3 bar | 5 m h2o | - | right | 25 m |
| PVCHSE021-30 | 200 mm | 218.2 mm | 9.1 mm | 6400 g/m | 900 mm | 2 bar | 5 m h2o | - | right | 10 m |
