Luisiana
From £0.00 EX VAT
| Product Code: | PVCHSE020 |
|---|

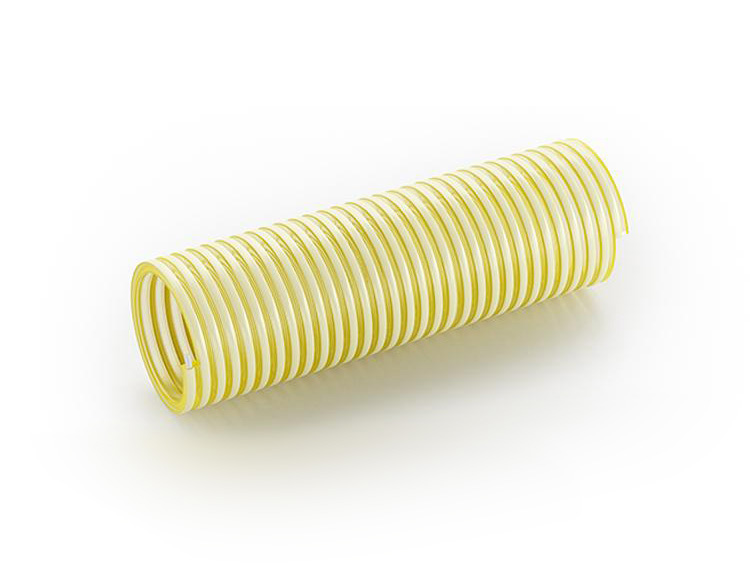

PVC hose with rigid PVC spiral. Designed for both the delivery and suction of food liquids.
| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Vacuum 23°c | Ø Rigid Spiral axb If Oval) | Spiral Pitch | Spiral Direction | Coil Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE020-01 | 18 mm | 24 mm | 3 mm | 230 g/m | 65 mm | 8 bar | 24 bar | 7 m h2o | 2,3x3,5 mm | 6.5 mm | right | 50 m | |
| PVCHSE020-02 | 3/4 inch | 19 mm | 24.6 mm | 2.8 mm | 230 g/m | 70 mm | 8 bar | 24 bar | 7 m h2o | 2,5x3,5 mm | 7 mm | right | 50 m |
| PVCHSE020-03 | 20 mm | 26.2 mm | 3.1 mm | 275 g/m | 75 mm | 8 bar | 24 bar | 7 m h2o | 2,5x4 mm | 6.7 mm | right | 50 m | |
| PVCHSE020-04 | 1 inch | 25 mm | 31.6 mm | 3.3 mm | 330 g/m | 120 mm | 8 bar | 24 bar | 7 m h2o | 3,2x3,4 mm | 7.4 mm | right | 50 m |
| PVCHSE020-05 | 30 mm | 37 mm | 3.5 mm | 420 g/m | 140 mm | 7 bar | 21 bar | 7 m h2o | 3,4x3,6 mm | 7.5 mm | right | 50 m | |
| PVCHSE020-06 | 1 1/4 inch | 32 mm | 39.2 mm | 3.6 mm | 460 g/m | 150 mm | 7 bar | 21 bar | 7 m h2o | 3,4x3,6 mm | 7.7 mm | right | 50 m |
| PVCHSE020-07 | 35 mm | 41.8 mm | 3.4 mm | 500 g/m | 160 mm | 7 bar | 21 bar | 7 m h2o | 3,4x3,6 mm | 7.7 mm | right | 50 m | |
| PVCHSE020-08 | 1 1/2 inch | 38 mm | 45.4 mm | 3.7 mm | 550 g/m | 170 mm | 6.5 bar | 19.5 bar | 7 m h2o | 3.6 mm | 7.6 mm | right | 50 m |
| PVCHSE020-09 | 40 mm | 47.6 mm | 3.8 mm | 610 g/m | 180 mm | 6.5 bar | 19.5 bar | 7 m h2o | 3.6 mm | 7.8 mm | right | 50 m | |
| PVCHSE020-10 | 1 3/4 inch | 45 mm | 52.8 mm | 3.9 mm | 670 g/m | 200 mm | 6.5 bar | 19.5 bar | 7 m h2o | 3.6 mm | 8 mm | right | 50 m |
| PVCHSE020-11 | 2 inch | 50 mm | 58.2 mm | 4.1 mm | 810 g/m | 220 mm | 6 bar | 18 bar | 7 m h2o | 4 mm | 8.3 mm | right | 50 m |
| PVCHSE020-12 | 2 inch | 51 mm | 59.5 mm | 4.1 mm | 810 g/m | 225 mm | 6 bar | 18 bar | 7 m h2o | 4 mm | 8.5 mm | right | 50 m |
| PVCHSE020-13 | 55 mm | 63.6 mm | 4.3 mm | 860 g/m | 250 mm | 6 bar | 18 bar | 7 m h2o | 4 mm | 9.8 mm | right | 50 m | |
| PVCHSE020-14 | 60 mm | 69 mm | 4.5 mm | 970 g/m | 270 mm | 5 bar | 15 bar | 7 m h2o | 4.4 mm | 8.3 mm | right | 50 m | |
| PVCHSE020-15 | 2 1/2 inch | 63 mm | 71.5 mm | 4 mm | 1040 g/m | 290 mm | 5 bar | 15 bar | 7 m h2o | 3.9 mm | 8.5 mm | right | 50 m |
| PVCHSE020-16 | 70 mm | 79.2 mm | 4.6 mm | 1200 g/m | 320 mm | 4 bar | 12 bar | 7 m h2o | 4.3 mm | 9 mm | right | 50 m | |
| PVCHSE020-17 | 75 mm | 85.4 mm | 5.2 mm | 1380 g/m | 350 mm | 4 bar | 12 bar | 7 m h2o | 4.8 mm | 9.5 mm | right | 50 m | |
| PVCHSE020-18 | 80 mm | 90.6 mm | 5.5 mm | 1560 g/m | 360 mm | 4 bar | 12 bar | 7 m h2o | 5 mm | 10.5 mm | right | 25 m | |
| PVCHSE020-19 | 3 1/2 inch | 90 mm | 100.4 mm | 5.2 mm | 1800 g/m | 430 mm | 4 bar | 12 bar | 7 m h2o | 5.1 mm | 10.3 mm | right | 25 m |
| PVCHSE020-20 | 100 mm | 112 mm | 6 mm | 2160 g/m | 480 mm | 4 bar | 12 bar | 7 m h2o | 5.5 mm | 11.3 mm | right | 25 m | |
| PVCHSE020-21 | 4 inch | 102 mm | 114 mm | 6.2 mm | 2160 g/m | 480 mm | 4 bar | 12 bar | 7 m h2o | 5.5 mm | 11.3 mm | right | 25 m |
| PVCHSE020-22 | 110 mm | 122 mm | 6 mm | 2400 g/m | 530 mm | 4 bar | 12 bar | 6 m h2o | 5.5 mm | 11.5 mm | right | 25 m | |
| PVCHSE020-23 | 120 mm | 132.4 mm | 6.2 mm | 2850 g/m | 680 mm | 3 bar | 9 bar | 6 m h2o | 6 mm | 11.5 mm | right | 25 m | |
| PVCHSE020-24 | 125 mm | 137.6 mm | 6.3 mm | 3130 g/m | 730 mm | 3 bar | 9 bar | 6 m h2o | 6.1 mm | 11.6 mm | right | 25 m | |
| PVCHSE020-25 | 5 inch | 127 mm | 140.6 mm | 6.8 mm | 3130 g/m | 730 mm | 3 bar | 9 bar | 6 m h2o | 6.1 mm | 12.3 mm | right | 25 m |
| PVCHSE020-26 | 150 mm | 164.4 mm | 7.2 mm | 4250 g/m | 810 mm | 3 bar | 9 bar | 5 m h2o | 6.5 mm | 14 mm | right | 25 m | |
| PVCHSE020-27 | 6 inch | 152 mm | 167.2 mm | 7.4 mm | 4250 g/m | 810 mm | 3 bar | 9 bar | 5 m h2o | 6.8 mm | 14.5 mm | right | 25 m |
| PVCHSE020-28 | 200 mm | 218.2 mm | 9.1 mm | 6400 g/m | 900 mm | 2 bar | 6 bar | 5 m h2o | 8.4 mm | 21.5 mm | right | 10 m |
