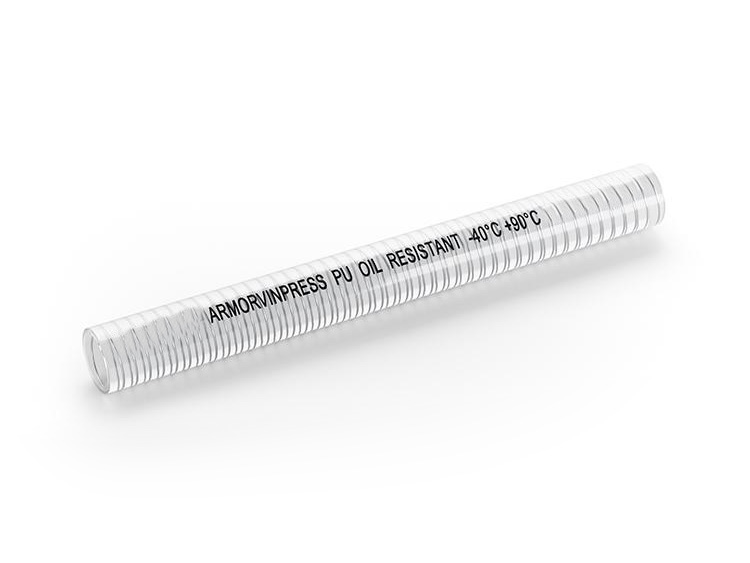

Armorvinpress Pu
| Product Code: | PVCHSE019 |
|---|
PVC hose with embedded reduced pitch galvanised steel spiral, internal layer in PU. Designed for both suction and delivery of liquids and air in pneumatic, hydraulic oil and chemical industry. Produced according to FDA 21 CFR 177.2600 par. “e/f” (watery foodstuffs, fatty foodstuffs).
| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Bursting Pressure 70°C | Vacuum 23°c | Spiral Pitch | Spiral Direction | Ø Spiral | Coil Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE019-01 | 3/16 inch | 5 mm | 10 mm | 2.5 mm | 80 g/m | 20 mm | 20 bar | 60 bar | 28 bar | 9 m h2o | 2.8 mm | right | 0.55 mm | 60 m |
| PVCHSE019-02 | 6 mm | 11 mm | 2.5 mm | 95 g/m | 23 mm | 20 bar | 60 bar | 26 bar | 9 m h2o | 3 mm | right | 0.55 mm | 60 m | |
| PVCHSE019-03 | 1/4 inch | 6.4 mm | 11.5 mm | 2.55 mm | 100 g/m | 26 mm | 20 bar | 60 bar | 26 bar | 9 m h2o | 3 mm | right | 0.55 mm | 60 m |
| PVCHSE019-04 | 5/16 inch | 8 mm | 13.5 mm | 2.75 mm | 135 g/m | 32 mm | 18 bar | 54 bar | 24 bar | 9 m h2o | 3.5 mm | right | 0.7 mm | 60 m |
| PVCHSE019-05 | 3/8 inch | 9.5 mm | 15.5 mm | 3 mm | 165 g/m | 38 mm | 18 bar | 54 bar | 23 bar | 9 m h2o | 4 mm | right | 0.7 mm | 60 m |
| PVCHSE019-06 | 10 mm | 16 mm | 3 mm | 180 g/m | 40 mm | 17 bar | 51 bar | 23 bar | 9 m h2o | 4 mm | right | 0.7 mm | 60 m | |
| PVCHSE019-07 | 12 mm | 18 mm | 3 mm | 210 g/m | 45 mm | 16 bar | 48 bar | 21 bar | 9 m h2o | 4.5 mm | right | 0.8 mm | 60 m | |
| PVCHSE019-08 | 1/2 inch | 12.7 mm | 19 mm | 3.15 mm | 230 g/m | 50 mm | 15 bar | 45 bar | 20 bar | 9 m h2o | 4.5 mm | right | 0.8 mm | 60 m |
| PVCHSE019-09 | 14 mm | 20.5 mm | 3.25 mm | 240 g/m | 56 mm | 14 bar | 42 bar | 19 bar | 9 m h2o | 5 mm | right | 0.8 mm | 60 m | |
| PVCHSE019-10 | 5/8 inch | 16 mm | 23 mm | 3.5 mm | 290 g/m | 63 mm | 14 bar | 42 bar | 18 bar | 9 m h2o | 5 mm | right | 0.8 mm | 60 m |
| PVCHSE019-11 | 18 mm | 25 mm | 3.5 mm | 320 g/m | 70 mm | 12 bar | 36 bar | 17 bar | 9 m h2o | 5.5 mm | right | 0.8 mm | 60 m | |
| PVCHSE019-12 | 3/4 inch | 19 mm | 26 mm | 3.45 mm | 320 g/m | 76 mm | 12 bar | 36 bar | 17 bar | 9 m h2o | 5.7 mm | right | 0.8 mm | 60 m |
| PVCHSE019-13 | 20 mm | 27 mm | 3.5 mm | 340 g/m | 80 mm | 12 bar | 36 bar | 16 bar | 9 m h2o | 5.7 mm | right | 0.8 mm | 60 m |
