Armorvinpress
From £5.28 EX VAT
| Product Code: | PVCHSE018 |
|---|

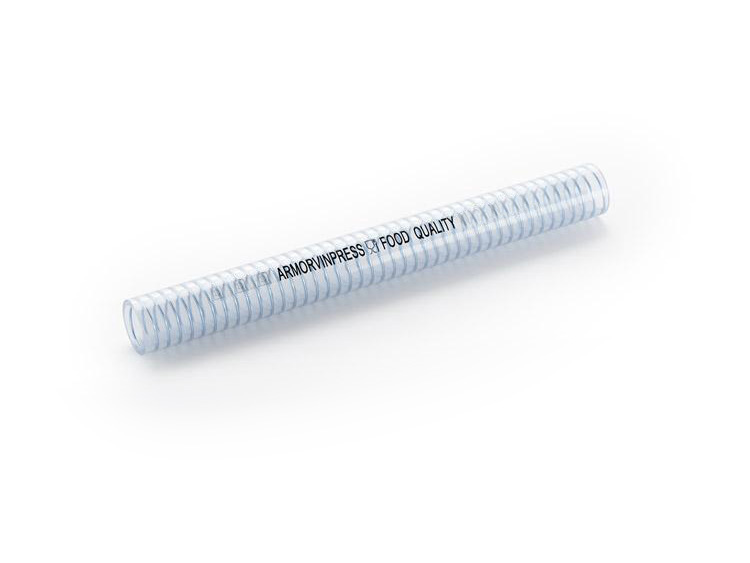

PVC hose with embedded reduced pitch galvanised steel spiral. Designed for suction and delivery of liquids and air in the pneumatic, hydraulic and chemical industry.
| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Vacuum 23°c | Spiral Pitch | Spiral Direction | Ø Spiral | Coil Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE018-01 | 3/16 inch | 5 mm | 10 mm | 2.5 mm | 85 g/m | 20 mm | 20 bar | 60 bar | 9 m h2o | 2.8 mm | right | 0.55 mm | 60 m |
| PVCHSE018-02 | 6 mm | 11 mm | 2.5 mm | 100 g/m | 23 mm | 18 bar | 54 bar | 9 m h2o | 3 mm | right | 0.55 mm | 60 m | |
| PVCHSE018-03 | 1/4 inch | 6.4 mm | 11.5 mm | 2.55 mm | 110 g/m | 26 mm | 18 bar | 54 bar | 9 m h2o | 3 mm | right | 0.55 mm | 60 m |
| PVCHSE018-04 | 5/16 inch | 8 mm | 13.5 mm | 2.75 mm | 140 g/m | 32 mm | 16 bar | 48 bar | 9 m h2o | 3.5 mm | right | 0.7 mm | 60 m |
| PVCHSE018-05 | 3/8 inch | 9.5 mm | 15.5 mm | 3 mm | 170 g/m | 38 mm | 16 bar | 48 bar | 9 m h2o | 4 mm | right | 0.7 mm | 60 m |
| PVCHSE018-06 | 10 mm | 16 mm | 3 mm | 180 g/m | 40 mm | 15 bar | 45 bar | 9 m h2o | 4 mm | right | 0.7 mm | 60 m | |
| PVCHSE018-07 | 12 mm | 18 mm | 3 mm | 210 g/m | 45 mm | 15 bar | 45 bar | 9 m h2o | 4.5 mm | right | 0.8 mm | 60 m | |
| PVCHSE018-08 | 1/2 inch | 12.7 mm | 19 mm | 3.15 mm | 230 g/m | 50 mm | 12 bar | 36 bar | 9 m h2o | 4.5 mm | right | 0.8 mm | 60 m |
| PVCHSE018-09 | 14 mm | 20.5 mm | 3.25 mm | 260 g/m | 56 mm | 12 bar | 36 bar | 9 m h2o | 5 mm | right | 0.8 mm | 60 m | |
| PVCHSE018-10 | 5/8 inch | 16 mm | 23 mm | 3.5 mm | 290 g/m | 63 mm | 12 bar | 36 bar | 9 m h2o | 5.2 mm | right | 0.8 mm | 60 m |
| PVCHSE018-11 | 18 mm | 25 mm | 3.5 mm | 320 g/m | 70 mm | 10 bar | 30 bar | 9 m h2o | 5.5 mm | right | 0.8 mm | 60 m | |
| PVCHSE018-12 | 3/4 inch | 19.1 mm | 26 mm | 3.45 mm | 350 g/m | 76 mm | 10 bar | 30 bar | 9 m h2o | 5.5 mm | right | 0.8 mm | 60 m |
| PVCHSE018-13 | 20 mm | 27 mm | 3.5 mm | 365 g/m | 80 mm | 10 bar | 30 bar | 9 m h2o | 5.6 mm | right | 0.8 mm | 60 m |
