Armorvin® Total Pu Oil Tphf

From £11.01 EX VAT

Product Code:	PVCHSE129

Description

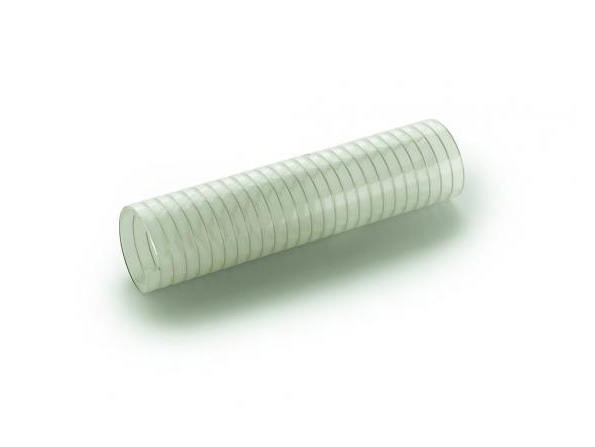

Hose in PU with an embedded galvanised steel spiral. Designed for both the suction and delivery of food liquids and food oils.

Product Code	Ø I.D.	Ø O.D.	Weight	Bending Radius	Working Pressure 1:3 23°C	Vacuum 23°c	Spiral Pitch	Ø Spiral	Coil Length
PVCHSE129-01	20 mm	28.5 mm	410 g/m	80 mm	7 bar	9 m h2o	7.5 mm	1 mm	30 m
PVCHSE129-02	25 mm	33.5 mm	520 g/m	100 mm	7 bar	9 m h2o	7.5 mm	1 mm	30 m
PVCHSE129-03	30 mm	39.2 mm	620 g/m	120 mm	7 bar	9 m h2o	8 mm	1 mm	30 m
PVCHSE129-04	40 mm	49.4 mm	900 g/m	160 mm	6 bar	8 m h2o	8.5 mm	1.2 mm	30 m
PVCHSE129-05	50 mm	60.4 mm	1160 g/m	200 mm	6 bar	8 m h2o	9.5 mm	1.5 mm	30 m
PVCHSE129-06	60 mm	70 mm	1440 g/m	240 mm	6 bar	8 m h2o	10.5 mm	1.5 mm	30 m
PVCHSE129-07	70 mm	80 mm	1650 g/m	300 mm	5 bar	8 m h2o	12.5 mm	1.8 mm	30 m
PVCHSE129-08	75 mm	85 mm	1730 g/m	320 mm	5 bar	7 m h2o	14 mm	1.8 mm	30 m
PVCHSE129-09	80 mm	90 mm	1800 g/m	340 mm	4 bar	7 m h2o	14 mm	1.8 mm	30 m
PVCHSE129-10	100 mm	114 mm	3250 g/m	400 mm	3 bar	7 m h2o	15 mm	2.5 mm	20 m
PVCHSE129-11	102 mm	116 mm	3300 g/m	420 mm	3 bar	7 m h2o	15 mm	2.5 mm	20 m
