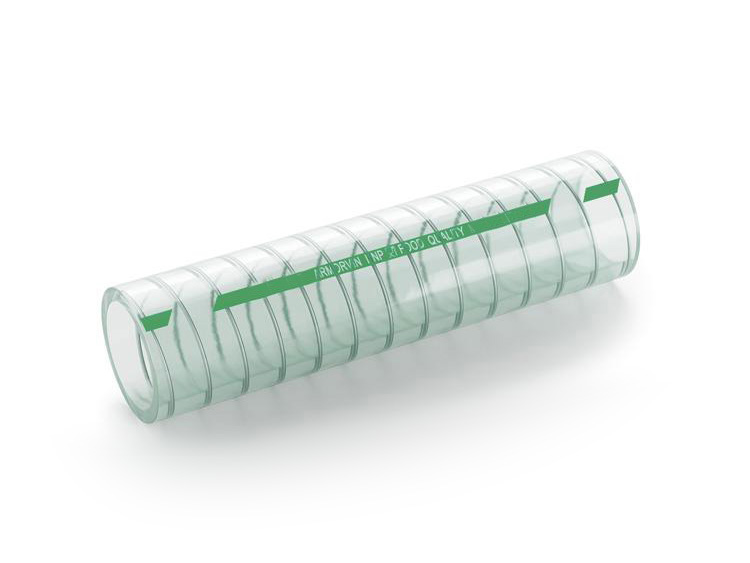

Armorvin® Hnp
| Product Code: | PVCHSE014 |
|---|
Soft PVC hose with embedded galvanised steel spiral. Heavy duty version. Designed for suction and delivery of liquids.
| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Vacuum 23°c | Spiral Pitch | Spiral Direction | Ø Spiral | Coil Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE014-01 | 3/8 inch | 10 mm | 16 mm | 3 mm | 155 g/m | 20 mm | 8 bar | 24 bar | 9.5 m h2o | 6.5 mm | right | 0.8 mm | 60 m |
| PVCHSE014-02 | 12 mm | 18 mm | 3 mm | 180 g/m | 25 mm | 8 bar | 24 bar | 9.5 m h2o | 7 mm | right | 0.8 mm | 60 m | |
| PVCHSE014-03 | 14 mm | 20 mm | 3 mm | 200 g/m | 30 mm | 8 bar | 24 bar | 9.5 m h2o | 7.5 mm | right | 0.8 mm | 60 m | |
| PVCHSE014-04 | 5/8 inch | 16 mm | 22 mm | 3 mm | 225 g/m | 35 mm | 8 bar | 24 bar | 9.5 m h2o | 7.5 mm | right | 0.8 mm | 60 m |
| PVCHSE014-05 | 18 mm | 24.5 mm | 3.25 mm | 280 g/m | 40 mm | 7 bar | 21 bar | 9.5 m h2o | 8 mm | right | 1 mm | 60 m | |
| PVCHSE014-06 | 20 mm | 27 mm | 3.5 mm | 340 g/m | 50 mm | 7 bar | 21 bar | 9.5 m h2o | 8 mm | right | 1 mm | 60 m | |
| PVCHSE014-07 | 7/8 inch | 22 mm | 29 mm | 3.5 mm | 360 g/m | 55 mm | 6 bar | 18 bar | 9.5 m h2o | 8.5 mm | right | 1 mm | 60 m |
| PVCHSE014-08 | 1 inch | 25 mm | 33 mm | 4 mm | 510 g/m | 60 mm | 6 bar | 18 bar | 9.5 m h2o | 13.5 mm | right | 1.4 mm | 60 m |
| PVCHSE014-09 | 30 mm | 39.5 mm | 4.75 mm | 680 g/m | 70 mm | 5 bar | 15 bar | 9.5 m h2o | 14.5 mm | right | 1.4 mm | 60 m | |
| PVCHSE014-10 | 1 1/4 inch | 32 mm | 41.5 mm | 4.75 mm | 730 g/m | 75 mm | 5 bar | 15 bar | 9.5 m h2o | 14.5 mm | right | 1.4 mm | 60 m |
| PVCHSE014-11 | 35 mm | 44 mm | 4.5 mm | 730 g/m | 80 mm | 5 bar | 15 bar | 9.5 m h2o | 14.5 mm | right | 1.4 mm | 60 m | |
| PVCHSE014-12 | 1 1/2 inch | 38 mm | 49 mm | 5.5 mm | 950 g/m | 90 mm | 5 bar | 15 bar | 9.5 m h2o | 15 mm | right | 1.6 mm | 30 m |
| PVCHSE014-13 | 40 mm | 53 mm | 6.5 mm | 1220 g/m | 100 mm | 5 bar | 15 bar | 9.5 m h2o | 17 mm | right | 2 mm | 30 m | |
| PVCHSE014-14 | 1 3/4 inch | 45 mm | 58 mm | 6.5 mm | 1400 g/m | 110 mm | 5 bar | 15 bar | 9.5 m h2o | 18 mm | right | 2 mm | 30 m |
| PVCHSE014-15 | 2 inch | 50 mm | 64 mm | 7 mm | 1600 g/m | 125 mm | 5 bar | 15 bar | 9 m h2o | 18 mm | right | 2 mm | 30 m |
| PVCHSE014-16 | 60 mm | 74 mm | 7 mm | 2050 g/m | 140 mm | 5 bar | 15 bar | 9 m h2o | 20 mm | right | 2.5 mm | 30 m | |
| PVCHSE014-17 | 2 1/2 inch | 63 mm | 77 mm | 7 mm | 2250 g/m | 150 mm | 4 bar | 12 bar | 9 m h2o | 20 mm | right | 2.5 mm | 30 m |
| PVCHSE014-18 | 70 mm | 86 mm | 8 mm | 2600 g/m | 180 mm | 4 bar | 12 bar | 9 m h2o | 20 mm | right | 2.5 mm | 30 m | |
| PVCHSE014-19 | 75 mm | 91 mm | 8 mm | 2850 g/m | 200 mm | 4 bar | 12 bar | 9 m h2o | 17 mm | right | 2.5 mm | 30 m | |
| PVCHSE014-20 | 80 mm | 96 mm | 8 mm | 3150 g/m | 220 mm | 3 bar | 9 bar | 9 m h2o | 17.5 mm | right | 2.5 mm | 30 m | |
| PVCHSE014-21 | 3 1/2 inch | 90 mm | 107 mm | 8.5 mm | 3750 g/m | 260 mm | 3 bar | 9 bar | 9 m h2o | 18 mm | right | 3 mm | 30 m |
| PVCHSE014-22 | 100 mm | 118 mm | 9 mm | 4400 g/m | 300 mm | 3 bar | 9 bar | 9 m h2o | 18.5 mm | right | 3 mm | 30 m | |
| PVCHSE014-23 | 105 mm | 122 mm | 8.5 mm | 4000 g/m | 310 mm | 2 bar | 6 bar | 9 m h2o | 17.5 mm | right | 2.5 mm | 20 m | |
| PVCHSE014-24 | 110 mm | 128 mm | 9 mm | 4650 g/m | 320 mm | 3 bar | 9 bar | 9 m h2o | 19 mm | right | 3 mm | 20 m | |
| PVCHSE014-25 | 120 mm | 138 mm | 9 mm | 5200 g/m | 340 mm | 2 bar | 6 bar | 9 m h2o | 19.5 mm | right | 3 mm | 20 m | |
| PVCHSE014-26 | 125 mm | 144 mm | 9.5 mm | 5400 g/m | 350 mm | 2 bar | 6 bar | 9 m h2o | 20 mm | right | 3 mm | 20 m | |
| PVCHSE014-27 | 150 mm | 170 mm | 9.5 mm | 7200 g/m | 450 mm | 2 bar | 6 bar | 9 m h2o | 18 mm | right | 3 mm | 20 m | |
| PVCHSE014-28 | 8 inch | 203 mm | 223 mm | 11 mm | 9900 g/m | 900 mm | 2 bar | 6 bar | 9 m h2o | 19.5 mm | right | 3 mm | CUT LENGTHS m |
