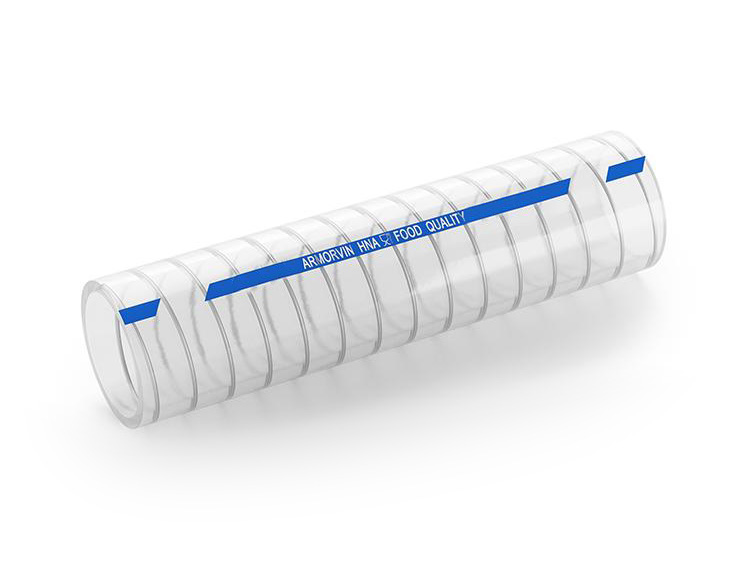

Armorvin® Hna
Soft PVC hose with embedded galvanised steel spiral. Designed for suction and delivery of food liquids.
| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Vacuum 23°c | Spiral Pitch | Ø Spiral | Coil Length | Spiral Direction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE013-01 | 3/8 inch | 10 mm | 16 mm | 3 mm | 155 g/m | 20 mm | 7 bar | 21 bar | 8.5 m h2o | 6.5 mm | 0.8 mm | 60 m | right |
| PVCHSE013-02 | 12 mm | 18 mm | 3 mm | 180 g/m | 25 mm | 7 bar | 21 bar | 8.5 m h2o | 7 mm | 0.8 mm | 60 m | right | |
| PVCHSE013-03 | 14 mm | 20 mm | 3 mm | 200 g/m | 30 mm | 6 bar | 18 bar | 8.5 m h2o | 7.5 mm | 0.8 mm | 60 m | right | |
| PVCHSE013-04 | 5/8 inch | 16 mm | 22 mm | 3 mm | 225 g/m | 35 mm | 6 bar | 18 bar | 8.5 m h2o | 7.5 mm | 0.8 mm | 60 m | right |
| PVCHSE013-05 | 18 mm | 24.5 mm | 3.25 mm | 280 g/m | 40 mm | 6 bar | 18 bar | 8.5 m h2o | 8 mm | 1 mm | 60 m | right | |
| PVCHSE013-06 | 3/4 inch | 19 mm | 26 mm | 3.5 mm | 310 g/m | 45 mm | 5 bar | 15 bar | 8.5 m h2o | 8 mm | 1 mm | 60 m | right |
| PVCHSE013-07 | 20 mm | 27 mm | 3.5 mm | 340 g/m | 50 mm | 5 bar | 15 bar | 8.5 m h2o | 8 mm | 1 mm | 60 m | right | |
| PVCHSE013-08 | 7/8 inch | 22 mm | 29 mm | 3.5 mm | 360 g/m | 55 mm | 5 bar | 15 bar | 8.5 m h2o | 8.5 mm | 1 mm | 60 m | right |
| PVCHSE013-09 | 1 inch | 25 mm | 33 mm | 4 mm | 510 g/m | 60 mm | 5 bar | 15 bar | 8.5 m h2o | 13.5 mm | 1.4 mm | 60 m | right |
| PVCHSE013-10 | 30 mm | 39 mm | 4.5 mm | 600 g/m | 70 mm | 4.5 bar | 13.5 bar | 8.5 m h2o | 13.5 mm | 1.4 mm | 60 m | right | |
| PVCHSE013-11 | 1 1/4 inch | 32 mm | 41 mm | 4.5 mm | 650 g/m | 75 mm | 4.5 bar | 13.5 bar | 8.5 m h2o | 13.5 mm | 1.4 mm | 60 m | right |
| PVCHSE013-12 | 35 mm | 44 mm | 4.5 mm | 730 g/m | 80 mm | 4 bar | 12 bar | 8.5 m h2o | 14.5 mm | 1.4 mm | 60 m | right | |
| PVCHSE013-13 | 1 1/2 inch | 38 mm | 47 mm | 4.5 mm | 800 g/m | 90 mm | 4 bar | 12 bar | 8.5 m h2o | 15 mm | 1.6 mm | 30 m | right |
| PVCHSE013-14 | 40 mm | 49.5 mm | 4.75 mm | 870 g/m | 95 mm | 3 bar | 9 bar | 8.5 m h2o | 15 mm | 1.6 mm | 30 m | right | |
| PVCHSE013-15 | 1 3/4 inch | 45 mm | 55 mm | 5 mm | 1100 g/m | 110 mm | 3 bar | 9 bar | 8 m h2o | 15 mm | 1.8 mm | 30 m | right |
| PVCHSE013-16 | 2 inch | 50 mm | 60 mm | 5 mm | 1200 g/m | 125 mm | 3 bar | 9 bar | 8 m h2o | 16 mm | 1.8 mm | 30 m | right |
| PVCHSE013-17 | 55 mm | 66 mm | 5.5 mm | 1380 g/m | 130 mm | 3 bar | 9 bar | 8 m h2o | 16.5 mm | 1.8 mm | 30 m | right | |
| PVCHSE013-18 | 60 mm | 72 mm | 6 mm | 1800 g/m | 140 mm | 2.5 bar | 7.5 bar | 8 m h2o | 20 mm | 2.5 mm | 30 m | right | |
| PVCHSE013-19 | 2 1/2 inch | 63 mm | 75 mm | 6 mm | 1880 g/m | 150 mm | 2.5 bar | 7.5 bar | 8 m h2o | 20 mm | 2.5 mm | 30 m | right |
| PVCHSE013-20 | 70 mm | 83 mm | 6.5 mm | 2200 g/m | 170 mm | 2 bar | 6 bar | 8 m h2o | 20 mm | 2.5 mm | 30 m | right | |
| PVCHSE013-21 | 75 mm | 89 mm | 7 mm | 2500 g/m | 200 mm | 2 bar | 6 bar | 7 m h2o | 20 mm | 2.5 mm | 30 m | right | |
| PVCHSE013-22 | 80 mm | 94 mm | 7 mm | 2700 g/m | 220 mm | 2 bar | 6 bar | 7 m h2o | 20 mm | 2.5 mm | 30 m | right | |
| PVCHSE013-23 | 3 1/2 inch | 90 mm | 104 mm | 7 mm | 2900 g/m | 260 mm | 2 bar | 6 bar | 7 m h2o | 20 mm | 2.5 mm | 30 m | right |
| PVCHSE013-24 | 100 mm | 114 mm | 7 mm | 3250 g/m | 300 mm | 2 bar | 6 bar | 7 m h2o | 19 mm | 2.5 mm | 30 m | right |
