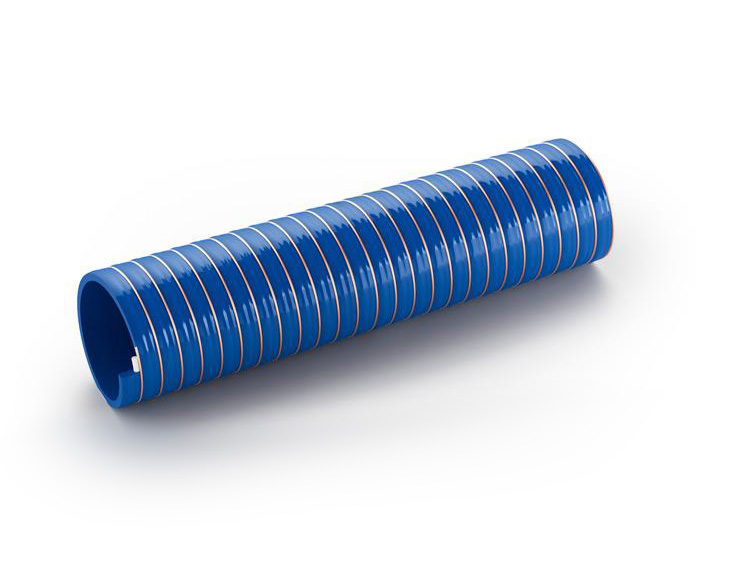

America Oil Antistatico Ric.
PVC hose with rigid PVC spiral and copper wire. Designed for both the delivery and suction of industrial oils.
| Product Code | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Spiral Pitch | Coil Length | Vacuum 23°c | Spiral Direction |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE046-01 | 25 mm | 34 mm | 4.5 mm | 480 g/m | 90 mm | 6 bar | 18 bar | 7 mm | 50 m | 9 m h2o | right |
| PVCHSE046-02 | 32 mm | 41.4 mm | 4.7 mm | 580 g/m | 115 mm | 5 bar | 15 bar | 8.3 mm | 50 m | 9 m h2o | right |
| PVCHSE046-03 | 38 mm | 47.6 mm | 4.8 mm | 680 g/m | 135 mm | 5 bar | 15 bar | 8 mm | 50 m | 9 m h2o | right |
| PVCHSE046-04 | 51 mm | 61.8 mm | 5.5 mm | 1050 g/m | 175 mm | 4.5 bar | 13.5 bar | 10 mm | 50 m | 9 m h2o | right |
| PVCHSE046-05 | 63 mm | 75.5 mm | 6 mm | 1390 g/m | 220 mm | 4 bar | 12 bar | 10.5 mm | 50 m | 9 m h2o | right |
| PVCHSE046-06 | 76 mm | 89 mm | 6.4 mm | 1700 g/m | 270 mm | 3.5 bar | 10.5 bar | 12.5 mm | 50 m | 9 m h2o | right |
| PVCHSE046-07 | 102 mm | 116.4 mm | 7.4 mm | 2700 g/m | 360 mm | 2.5 bar | 7.5 bar | 14 mm | 30 m | 9 m h2o | right |
| PVCHSE046-08 | 152 mm | 170.4 mm | 9 mm | 5000 g/m | 530 mm | 1.5 bar | 4.5 bar | 19.5 mm | 30 m | 9 m h2o | right |
