America Oil

From £0.00 EX VAT

Product Code:

Description

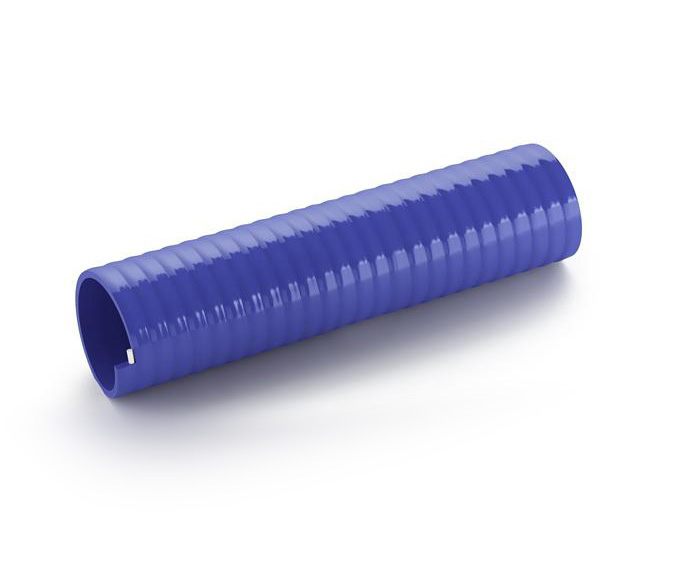

PVC hose with rigid PVC spiral and smooth inside. Designed for both the suction and delivery of oil based liquids.

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Total Thickness	Weight	Bending Radius	Working Pressure 1:3 23°C	Bursting Pressure 23°C	Spiral Pitch	Coil Length	Vacuum 23°c	Spiral Direction
PVCHSE045-01		25 mm	34 mm	4.5 mm	480 g/m	90 mm	6 bar	18 bar	7 mm	50 m	9 m h2o	right
PVCHSE045-02		32 mm	41.4 mm	4.7 mm	580 g/m	115 mm	5 bar	15 bar	8.3 mm	50 m	9 m h2o	right
PVCHSE045-03		38 mm	47.6 mm	4.8 mm	680 g/m	135 mm	5 bar	15 bar	8 mm	50 m	9 m h2o	right
PVCHSE045-04	2 inch	51 mm	61.8 mm	5.5 mm	1050 g/m	175 mm	4.5 bar	13.5 bar	10 mm	50 m	9 m h2o	right
PVCHSE045-05	2 1/2 inch	63 mm	75.5 mm	6 mm	1390 g/m	220 mm	4 bar	12 bar	10.5 mm	50 m	9 m h2o	right
PVCHSE045-06	3 inch	76 mm	89 mm	6.4 mm	1700 g/m	270 mm	3.5 bar	10.5 bar	12.5 mm	50 m	9 m h2o	right
PVCHSE045-07	4 inch	102 mm	116.4 mm	7.4 mm	2700 g/m	360 mm	2.5 bar	7.5 bar	14 mm	30 m	9 m h2o	right
PVCHSE045-08	6 inch	152 mm	170.4 mm	9 mm	5000 g/m	530 mm	1.5 bar	4.5 bar	19.5 mm	30 m	9 m h2o	right
