America Flex
From £588.60 (ex. VAT)

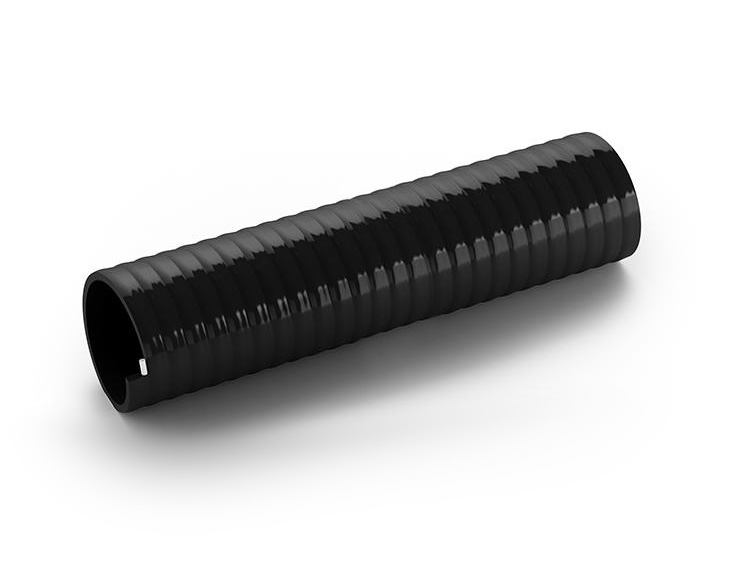

Special mixture PVC hose with rigid PVC spiral. Making it extremely flexible. Designed for both the suction and delivery of liquids, irrigation, cleaning of sewers and cesspits.
| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Vacuum 23°c | Ø Rigid Spiral axb If Oval) | Spiral Pitch | Coil Length | Spiral Direction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE032-01 | 2 inch | 51 mm | 59.6 mm | 4.4 mm | 850 g/m | 160 mm | 3 bar | 9 bar | 8 m h2o | 4.1 mm | 9 mm | 50 m | right |
| PVCHSE032-02 | 2 1/2 inch | 63 mm | 73.5 mm | 5 mm | 1100 g/m | 200 mm | 3 bar | 9 bar | 8 m h2o | 4.5 mm | 10.5 mm | 50 m | right |
| PVCHSE032-03 | 3 inch | 76 mm | 87.2 mm | 5.5 mm | 1500 g/m | 250 mm | 3 bar | 9 bar | 8 m h2o | 5 mm | 11.5 mm | 30 m | right |
| PVCHSE032-04 | 80 mm | 91 mm | 5.5 mm | 1650 g/m | 270 mm | 3 bar | 9 bar | 8 m h2o | 5 mm | 11.7 mm | 30 m | right | |
| PVCHSE032-05 | 3 1/2 inch | 90 mm | 99.9 mm | 5.5 mm | 1900 g/m | 290 mm | 2 bar | 6 bar | 8 m h2o | 5.1 mm | 11.7 mm | 30 m | right |
| PVCHSE032-06 | 4 inch | 102 mm | 113.6 mm | 6 mm | 2300 g/m | 330 mm | 2 bar | 6 bar | 7 m h2o | 5.7 mm | 13 mm | 30 m | right |
| PVCHSE032-07 | 5 inch | 127 mm | 141 mm | 7 mm | 3300 g/m | 410 mm | 2 bar | 6 bar | 7 m h2o | 6.5 mm | 13.5 mm | 20 m | right |
| PVCHSE032-08 | 6 inch | 152 mm | 167.4 mm | 7.5 mm | 4300 g/m | 500 mm | 2 bar | 6 bar | 7 m h2o | 7 mm | 15 mm | 20 m | right |
