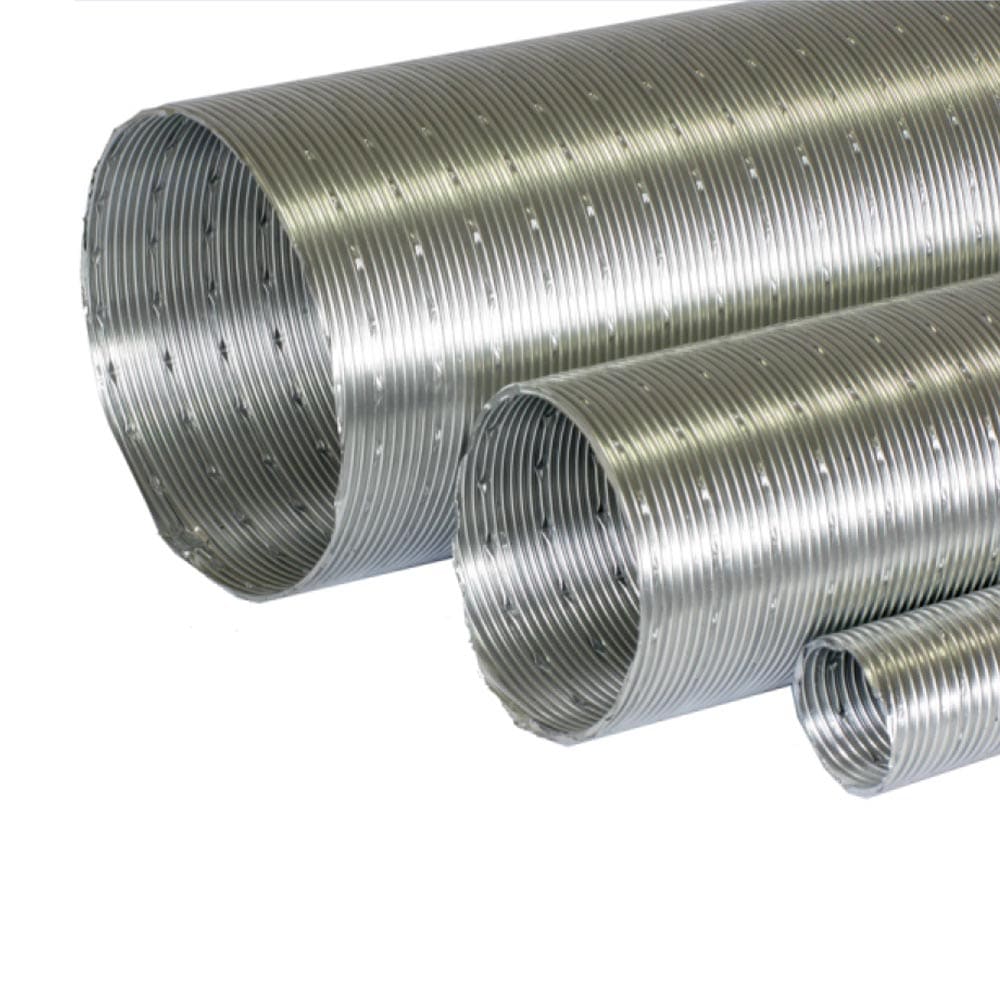

Aluminium Ducting
| Product Code: | MET000 |
|---|
This lightweight aluminium ducting is ideal for a wide range of air ducting systems. A spirally wound crimp locked aluminium strip ,this tube is self supporting (stays put once positioned), is suitable for use in permanent situations and has the advantage of a very tight bend radius
Technical Specification
| Standard Lengths | 10m |
|---|---|
| Minimum Working temperature | -30°C |
| Maximum Working temperature | +330°C |
Variants Available
| Inside Diameter Ref (in) | Actual Inside Diameter (mm) | kg per 100m |
|---|---|---|
| 1.1/2 | 38 | 0.14 |
| 1.3/4 | 45 | 0.16 |
| 2 | 50 | 0.18 |
| 2.1/4 | 55 | 0.20 |
| 2.3/8 | 60 | 0.21 |
| 2.1/2 | 63 | 0.23 |
| 2.3/4 | 70 | 0.25 |
| 3 | 75 | 0.27 |
| 3.1/4 | 82 | 0.29 |
| 3.1/2 | 90 | 0.32 |
| 3.3/4 | 95 | 0.34 |
| 4 | 100 | 0.36 |
| 4.1/4 | 108 | 0.38 |
| 4.1/2 | 115 | 0.40 |
| 4.3/4 | 120 | 0.42 |
| 5 | 125 | 0.44 |
| 6 | 152 | 0.53 |
| 7 | 178 | 0.62 |
| 8 | 203 | 0.71 |
| 9 | 229 | 0.80 |
| 10 | 250 | 0.89 |
| 12 | 305 | 1.06 |
Additional Notes
None.
